The Remote Management Console

After you log on to the DXi V5000, the remote management console displays. The remote management console includes the following features:

The system banner displays at the top of the remote management console. Use the system banner to see overall system status and alert information at a glance, and to quickly access additional information. The system banner also displays the time and date as well as the login type (administrator or monitor).

The following items display on the system banner.

Item Description

Model Number

The model number of the DXi. See Model Number.
Status

Displays the operating state of the DXi:

  • Normal - (Green) The system is operating correctly.
  • Attention - (Yellow) There is a problem with the system.

Note: The state displays Attention during a blockpool verify operation, See Blockpool Verify Behavior.

  • Verify Failure - (Red) The blockpool verify process has failed.
  • Low Space - (Yellow) Available disk space is low. Ingest and replication continue, and space reclamation starts.
  • Critical Reserve Space - (Red) Available disk space is critically low. Ingest and replication are stopped, and space reclamation continues.
  • No Space - (Red) There is no available disk space. Ingest and replication are stopped, and space reclamation continues.

Click the Status button to display detailed status information about the system. See Hardware.
Community or Licensed Edition

Displays the Edition of the product, either:

  • Community - Free for use with no expiration date, with a maximum storage limit of 5 TB for deduplicated and compressed user data, also called bulk storage.

  • Licensed - Available for install at login, this edition allows the purchase and installation of optional Quantum licenses for capacity beyond the free 5 TB, with a Storage Capacity license for up to 256 TB of bulk data storage and up to 50 ingest streams, as well as Service and Support.

See System Overview for more information
Admin The Admin button turns yellow when an administration alert occurs. Click the Admin button to manage administration alerts. See Admin Alerts.
Ticket The Ticket button turns yellow when open service tickets are present. Click the Ticket button to manage service tickets. See Service Tickets.
Low Capacity

The Low Capacity button turns yellow when available disk space falls to a low level and the DXi enters Low Space state. Click the Low Capacity button to view the administration alerts related to low disk space. See Low Space Management and Admin Alerts.

Note: When disk space is low, target replication to the system is paused. In addition, space reclamation and compaction are automatically started to free up disk space. See Replication Service and Space Reclamation.
Logout Click to end your remote management session.
User

Username assigned to the user (admin, monitor, servicegui, LDAP or access control user).

Note: User names are in lower case.
Role

Role assigned (administrator or monitor).

Note: Role names are in lower case.
Help Menu

Select from the following help options:

  • Help Contents - Open the DXi online help.
  • Online Documentation - Access documentation resources on the Quantum Web site.
  • Best Practices - Access the Best Practices Guides page in the DXi Documentation Center.
  • End User License Agreement - Access the EULA (End User License Agreement.
  • About - Display DXi software version information, including CPU model and blockpool used.

The Model Number displays in the DXi System Overview section on the Home page.

As disk capacity is used and free disk space approaches low levels, the DXi automatically responds as detailed in the table below.

WARNING: If you receive a WARNING, monitor space utilization closely going forward and consider purchasing expansion or modifying system usage.

When the DXi enters the Low Space state, space reclamation and compaction are automatically started to free up disk space. Space reclamation and compaction end when the DXi exits the Low Space state. See Space Reclamation.

When the DXi enters the Critical Reserve Space state, backup ingest is stopped, and target replication to the system is paused. Backup ingest and target replication resume when the DXi exits the Critical Reserve Space state.

Note: The system generates a service ticket and an admin alert when it enters the Low Space, Critical Reserve Space, and No Space states. In addition, a service ticket and an admin alert are generated when Used Disk Space reaches 85% and 95% of total disk capacity.

State

Disk Space Level

System Actions

Normal (Green)

Normal disk space

Low Capacity button is dark.

Low Space (Yellow)

Capacity remaining is less than 15%. (7% of bulk, minimum of 7GB, maximum of 500GB)

Low Capacity button is lit.

Space reclamation is automatically started.

Critical Reserve Space (Red)

Capacity remaining less than 5%. (5% of bulk, minimum of 5GB, maximum of 250 GB)

Low Capacity button is lit.

Backup ingest and replication are stopped.

Space reclamation is automatically started.

No Space (Red)

Insufficient space remains to continue operations. (2% of bulk, minimum of 2GB, maximum of 10GB)

Note: No Space also occurs if the Used Metadata percentage is 85% or greater.

Low Capacity button is lit.

Backup ingest and replication are stopped.

Space reclamation is automatically started.

A blockpool verify operation occurs if data on the system requires repair, for example, after an unexpected shutdown due to a power loss. During a blockpool verify operation, the banner displays the Attention state. Clicking Attention displays the message: A previous unclean shutdown of the DXi has required a data verification to commence. While in this condition the DXi is operational, but performance may be severely degraded.

While a blockpool verify operation is in progress, some system operations are affected.

  • Retrieving data created prior to the blockpool verify may fail.
  • Sending data that existed prior to the blockpool verify to a replication target may fail.
  • Sending new data to a replication target, or receiving replicated data, should succeed.
  • Space reclamation and healthchecks will fail.

When the blockpool verify is complete, the banner displays Normal, and the system resumes normal operation

The main menu displays on the left side of the DXi remote management console. Click a menu item to display the corresponding management page.

To access Advanced Reporting, click the Advanced Reporting button below the main menu. DXi Advanced Reporting combines comprehensive performance data logging with powerful visual reporting and analysis tools to help you identify potential problems and optimize system operation. With DXi Advanced Reporting, you can view an array of performance statistics for a DXi system and see how those statistics change over time.

For information about using DXi Advanced Reporting, click the help icon [?] on the upper right of the Advanced Reporting window.

Note: Clicking Wizards on the main menu replaces the main menu with the wizards menu. Click a menu item to begin a wizard, or click Exit to return to the main menu. See Configuration Wizards .

Use the DXi management pages to view information as well as configure and manage the system. To navigate to a page, first click a menu item, then click a tab to display the corresponding page. Some pages include sub-tabs that display pages with additional information and options.

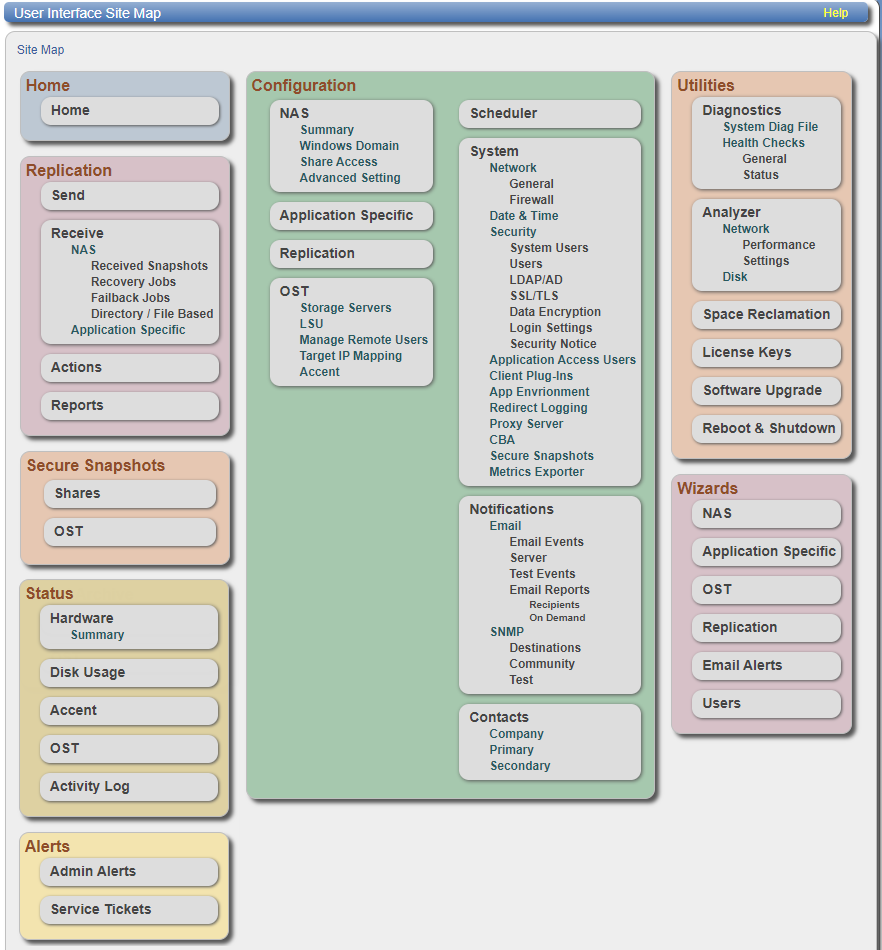

To view a graphical map of all remote management pages, click Map on the main menu. On the map, click the name of a page to quickly navigate to that page.

If you need help as you work, click Helpthe help icon [?] in the page's title bar to see online help for that page. In addition, Quick Tips are available on many pages. Click the Quick Tip icon [?] next to a section or field to learn more about that item.

Caution: Unless directed to do so by the documentation, do not use your Web browser’s Back, Forward, or Refresh buttons when navigating in the remote management console. Doing so may have unintended effects. Instead, always use the main menu and tabs to navigate in the remote management console.
