Network

Configuring the network includes the following major steps:

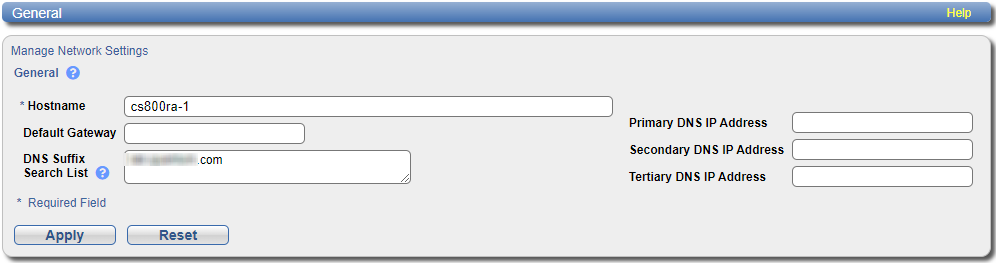

From the Configuration > System page, select the Network > General tab, and then enter the following network information as provided by your network administrator:

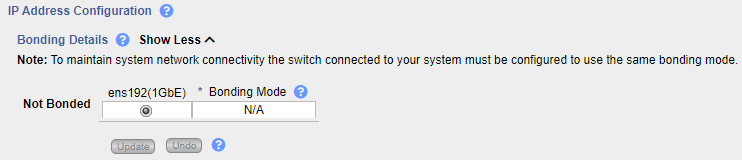

From the System tab, select Network > IP Address Config, and then under Bonding Details, use this section to aggregate multiple ports into a single group, with total bandwidth combined into the single (bonded) connection:

1. If necessary, click the Show More link to show the bonding details table.

2. For each available bonded device, select two or more Ethernet ports with the same link speed to assign to the bond. Or select Not Bonded to leave a port unassigned to any bond.

   If no ports are assigned to a bond, the bond cannot be configured. That is, settings cannot be entered for the bond in the Interface Details or IP Address tables because no Ethernet ports are assigned to the device.

   All ports assigned to the same device are bonded together into a single logical port. A bonded device can contain two or more ports.

   All ports associated with a bond must have the same link speed (1GbE or 10GbE).

3. For each bonded device, specify the bonding mode:

   Note: To maintain network connectivity, the switch connected to the DXi must be configured to use the same bonding mode. The best time to change the bonding mode on the switch is during the next reboot of your system, after saving the new network settings. Changing the bonding mode on the switch before saving these settings and rebooting may result in the loss of network connectivity to the system.

   Bonding Mode	Description
   Round Robin (Mode 0)	This option sends Ethernet frames using the bonded Ethernet ports with a valid MII link. Frames are sent in a round-robin fashion, starting with the first slave device and then the rest of the devices. This only applies to the traffic sent from the DXi. The Ethernet switch needs to aggregate the ports, so the connected ports are treated as a logical port. The DXi frame reception is completely dependent on the transmission algorithm of the Ethernet switch. The bonding mechanism does not balance the frame reception. WARNING: The use of Round Robin (Mode 0) may cause TCP packets to arrive out of order. This can cause timeouts in the transfers. Quantum recommends using Mode 1 or Mode 4 for TCP data transfers.
   LACP (Mode 4)	This option (Link Aggregation Control Protocol) is based on the 802.3ad IEEE standard for aggregating Ethernet ports. If the bonding algorithm is set to LACP, the Ethernet switch ports must be configured in a 802.3ad based Link Aggregation group (LAG) in LACP mode. The DXi frame reception and transmission is controlled by the LACP between the bonded ports and the Ethernet switch ports.
   Active Backup (Mode 1)	This option does not require switch configuration but may not provide the same level of load balancing and performance as other bonding modes. Only one port in the bond is active at a time. If the active port fails, another port becomes active to take its place. Because only the MAC address of the active port is visible to the Ethernet switch, the switch does not require additional configuration.

4. Click Update to save the changes you made to the Bonding Details table. (Clicking Update does not yet apply the new network settings to the DXi.)

   Note: Click Undo to revert to all current Bonding Details changes to the last update.

5. To apply network settings to the bonded connection, refer to Configuring Interface IP Addresses below.

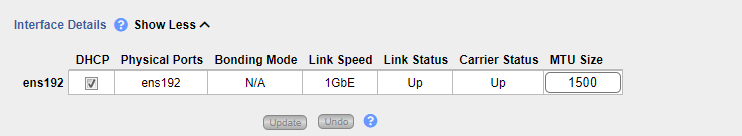

Under IP Address Configuration > Interface Details, configure jumbo Ethernet frame settings for each port or device:

1. If necessary, click the Show link to show the interface details table.

2. For each device, select the MTU (Maximum Transmission Unit) frame size in the Jumbo Frame MTU Size drop-down box.

   1500 MTU	(Default) The standard (STD) MTU frame size of 1,500 bytes is used.
   9000 MTU	The jumbo MTU frame size of 9,000 bytes is used. (For best performance, make sure the entire network path to the DXi is configured to use 9000 MTU.)

3. Click Update to save the changes you made to the Interface Details table. (Clicking Update does not yet apply the new network settings to the DXi.)
4. Click Undo to revert to all current Interface Details changes to the last update.

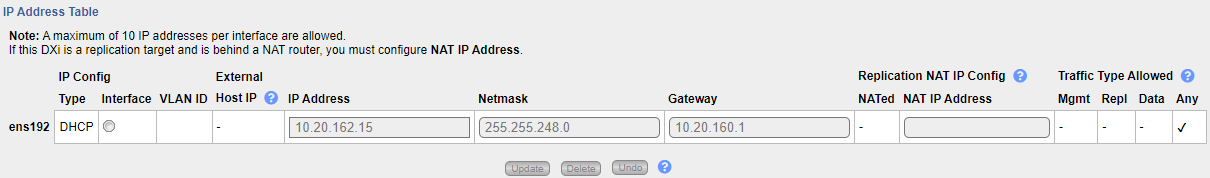

Under IP Address Configuration > IP Address Table, configure one or more network interfaces for each port or device (physical virtual Ethernet port or bonded device):

1. Click Add IP to add a network interface to a device.

   Or select an interface to edit the IP address, netmask, gateway and traffic type. (To select an interface, click the radio button next to the interface index name, for example, bond0:2.)

   Note: A maximum of 10 IP addresses are allowed per device. All IP addresses in the IP Address Table (added or modified) must be valid and unique, and must have a valid gateway and netmask.

2. In the VLAN ID column, select the check box to enable VLAN tagging for the interface. (Or clear the check box to disable VLAN tagging for the interface.)

   VLAN tagging allows you to assign an interface to a virtual local area network (VLAN). With VLAN tagging, you can route different traffic types (management, data, and replication) over different VLANs, making sure traffic types do not mix.

   If VLAN tagging is enabled, enter the VLAN Tag ID for the interface. (Valid values are 2 to 4094. You can assign only one tag ID to an interface.)

   Additional Information

   • The maximum allowed number of VLAN tag IDs is 64. If you attempt to add more than 64 VLAN tag IDs, an error displays.
   • To maintain connectivity, the switch ports connected to the system must be configured to accept the correct VLAN tag ID.

   Caution: If VLAN tagging is enabled for an interface, system Advanced Reporting is unable to collect and record statistics for traffic moving over the VLAN interface (for example, eth1.400). Statistics are still collected for the base device (for example, eth1.)

3. In the External Host IP column, select the check box to designate the interface as an external host IP. This associates the interface IP address with the host name of the system, and the system is externally identified by the host IP. The following restrictions apply:

   • You can designate only one external host IP for the network configuration.
   • You must specify a traffic type of Mgmt (management) or Any for the external host IP interface.
   • You must specify a valid Default Gateway in the General section. In addition, the external host IP must be on the same subnet as the Default Gateway to ensure external communication.

4. Enter the following network information as provided by your network administrator (all fields are required):

   IP Address	The IP address of the interface.
   Netmask	The network mask of the interface.
   Gateway	A gateway in the network specified by IP address and netmask. (This is usually not the same as the default gateway. If the network has no gateway, the IP address is entered as the gateway.)

5. If necessary, specify NAT (Network Address Translation) settings for the interface:

   Note: If the DXi is a replication target and is behind a NAT router, you must configure a NAT IP Address

   NATed	Select the check box if the IP address of the system is translated by a firewall to a NAT IP address when the system communicates to the outside world.
   NAT IP Address	The IP address used to access the DXi from the public network. The router that connects the system to the Internet performs Network Address Translation that maps the IP address of the system to the NAT IP address, providing a valid replication interface for a source system.

6. Select the check box for each type of network traffic allowed on the interface (segmentation):

   At least one interface must allow management traffic.

   Mgmt	Select to allow management traffic.
   Repl	Select to allow replication traffic.
   Data	Select to allow data traffic.
   Any	Select to allow all types of traffic.

   Additional Information

   • At least one interface must allow management traffic.

   • If a default gateway exists, the default gateway must be the gateway of an interface.

   • If the system is configured for source or target replication, you should configure at least one interface to allow replication traffic before applying changes to network settings. Select Repl. or Any.
   • If you configure segmentation for non-bonded interfaces (Ethernet ports) that are on the same subnet, all traffic will use the lowest numbered Ethernet port first, no matter how segmentation is configured. To avoid this issue, create bonded interfaces, and then select the desired traffic type for each bonded interface.

7. Click Update to save the changes you made to the IP Address table. (Clicking Update does not yet apply the new network settings to the DXi.)
8. Click Delete to remove IP address information for the selected interface. Or click Undo to revert all current IP Address Table changes to the last update.

Note: When you add a network interface, a default route (via the default gateway) is automatically created for the interface after network settings are applied and the system reboots. For example, if you add an interface with IP address 10.20.185.172, a route with the destination IP address 10.20.185.0 is automatically added. If you delete the default route, it is automatically added again the next time network settings are applied and the system reboots. For more information about interface routing, see Configuring Interface Routing.

Some network configurations require that you specify routing details for an interface. You need to specify routing details if the host or client the interface connects to is on a different subnet that is not reachable using the default gateway. You also need to specify routing details if you have configured multiple network segments (replication, data, or management) on the same subnet. For more information and examples, see Example 2: Segments and Target on the Same Subnet.

Under IP Address Configuration > Routing Details, enter routing information for one or more interfaces.

1. In the IP Address Table (above routing details), select an interface to add or modify routing data. (To select an interface, click the radio button next to the interface index name, for example, bond0:2.)

   After selecting an interface in the IP Address Table, the Routing Details table below expands to display available routes (if any).

   Note: A maximum of 8 routes per interface are allowed.

2. If necessary, click the Show link to show the routing details table.

3. Click Add Route to add a route to the selected interface.

   Or select a route to edit its settings.

4. Enter the following network information as provided by your network administrator:

   Destination	The destination network for the route.
   Dest Netmask	The network mask for the route.
   Dest Gateway	The gateway IP address used for outgoing traffic sent from the interface to a host or client. (This is usually not the same as the default gateway.)

   Additional Information

   • The destination gateway of each route must match the subnet of at least one configured IP address listed in the IP Address Table. If no match is found, an error displays stating that the route’s destination gateway is not reachable.
   • In the example shown below, to reach a host on the 10.50.50.x subnet, you would enter 10.50.50.0 for destination network, 255.255.255.0 for the destination netmask, and 10.20.20.1 as the destination gateway.
5. Click Update to save the changes you made to the Routing Details table. (Clicking Update does not yet apply the new network settings to the DXi.)
6. Click Delete to remove IP routing information for the selected interface. Or click Undo to revert all current Routing Details changes to the last update.

For network changes to take effect, you must apply the changes, finalize the confirmation, and reboot the system.

1. To apply all changed settings on the Network page to the DXi, click Apply at the bottom of the page.

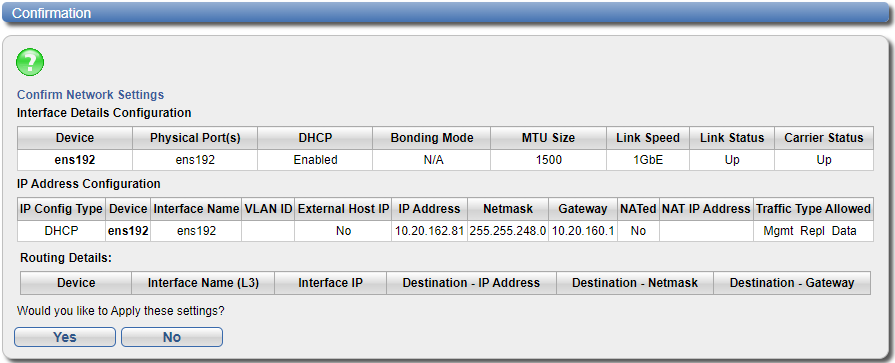

The Confirmation screen displays the network settings to be applied to the system.



2. Click on Yes to apply the selected configuration and routing settings.

Note: The following network setting changes do not require a system reboot:

• Hostname
• DNS IP Address
• Domain Search Prefix
• MTU Size

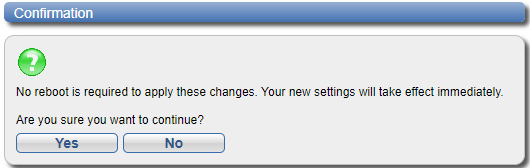

The Confirmation dialog is displayed.



3. Select one of the following options.

Option	Description
Yes	Your updated network settings are now active.
No	The Network > IP Address Config page is displayed. Changes made to the settings remain but are not applied.

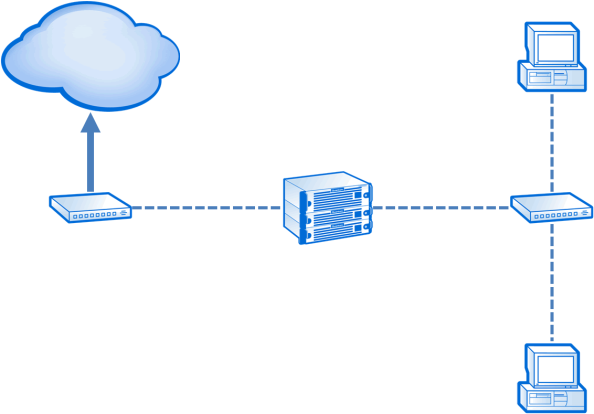

In the example below, the system has two segmented interfaces, one for management traffic and one for data traffic:

• The management interface is assigned to the 10.30.24.x subnet in the IP Address Table section. This subnet connects to the corporate network by mean of the default gateway (10.30.24.1).
• The data interface is assigned to the 10.20.20.x subnet in the IP Address Table section. This subnet connects to a gateway at 10.20.20.1.

• Using the data interface, the system needs to connect to a backup host that is on the 10.50.50.x subnet. Because this host is not on the same subnet as the data interface, the system cannot communicate with the host unless you specify routing information in the Routing Details section.

In this example, you would specify 10.50.50.0 for destination network, 255.255.255.0 for the destination netmask, and 10.20.20.1 as the destination gateway.

Note: The gateway specified in the IP Address Table section is for incoming traffic to the interface. The gateway specified in the Routing Details section is for outgoing traffic from the interface.

In the example below, the system has two segmented interfaces, one for data and management traffic, and one for replication traffic:

• The source system management/data IP address, the source system replication IP address, and the target system IP address are all on the same subnet (192.168.10.x).
• To make sure the replication segment is used when communicating with the target system, you must add a host route in the Routing Details section on the source system.

In this example, you would specify the following routing details for the replication interface on the source system:

In the example below, the system has two segmented interfaces, one for data and management traffic, and one for replication traffic:

• The source system management/data IP address and the source system replication IP address are on the same subnet (192.168.10.x). The target system IP address is on a different subnet (192.168.20.x)
• To make sure the replication segment is used when communicating with the target system, you must add a network route in the Routing Details section on the source system.

In this example, you would specify the following routing details for the replication interface on the source system:

• In addition, to enable communication with the target system by means of the gateway, you must add a second host route in the Routing Details section on the source system.

In this example, you would specify a second set of routing details for the replication interface on the source system:
