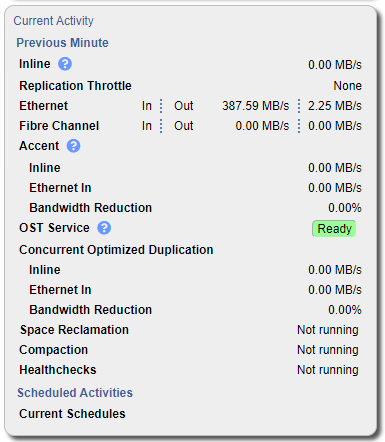

Current Activity
The Current Activity overview on the Home page displays the following information about system activity that occurred in the previous minute:
| Current Activity Information | Description |
|---|---|
| Inline | The inline data flow throughput (in MB/s). Inline data flow includes deduplicated and non-deduplicated backup data as well as received OST data. |
| Replication Throttle | The system replication throttle currently in effect (in KB/s or MB/s). When a constant throttle is enabled, the DXi limits the amount of data it sends during source replication so that it does not exceed the specified bandwidth. |
| Ethernet | The amount of data received (In) and sent (Out) by all Ethernet ports (in MB/s). |
|
Fibre Channel |
The amount of data received (In) and sent (Out) by all Fibre Channel ports (in MB/s). |
| Accent |
Accent statistics include Application Specific and OST Accent throughput activity for the previous minute. OST activity is included only if Accent is selected for OST. Inline - The inline data flow throughput (in MB/s). Inline data flow represents the original, native size of the data protected by the DXi. Ethernet In - The amount of data received by all Ethernet ports (in MB/s). This amount represents the reduced size of the data protected by the DXi (after deduplication and compression on the media servers). Bandwidth Reduction - The percentage by which network bandwidth utilization was reduced by Accent and/or RMAN. |
|
OST Service |
The status of the OST service. OST settings can be configured in Ready, Stopped, or Verifying state. The OST server is available for backup only in Ready state. |
| Concurrent Optimized Duplication |
Inline - The inline data flow throughput (in MB/s). Inline data flow represents the original, native size of the data protected by the DXi. Ethernet In - The amount of data received by all Ethernet ports (in MB/s). This amount represents the reduced size of the data protected by the DXi (after deduplication and compression on the media servers). Bandwidth Reduction - The percentage by which network bandwidth utilization was reduced by using Optimized Duplication. |
| Space Reclamation | The status of space reclamation (Not running or Percent complete). See Space Reclamation. |
| Compaction | The status of space compaction (Not running or Running). See Space Reclamation. |
| Healthchecks | The status of healthchecks (Not running or Percent complete). See Healthchecks. |
To view or modify scheduled system activity, click Current Schedules. See Scheduler.
