Hardware Overview

The Quantum Xcellis Workflow Director (Gen 2) system is a workflow storage system with various configurations and options to meet your evolving storage performance and capacity needs. The StorNext Unified User Interface and the StorNext UI provide ongoing holistic monitoring of your entire StorNext environment after initial configuration.

System components include:

  • One or two server nodes
  • One RAID Chassis
  • JBOD/Expansion Chassis (optional)
  • Additional RAID Chassis (optional)
  • Additional JBOD/Expansion Chassis connected to the additional RAID chassis (optional)

Figure 1: Minimum Xcellis Workflow Director (Gen 2)/H2000/F2100 configuration: an Xcellis Workflow Director system configured witha single server node, and a single 2U H2000 RAID or F2100, and no JBODs

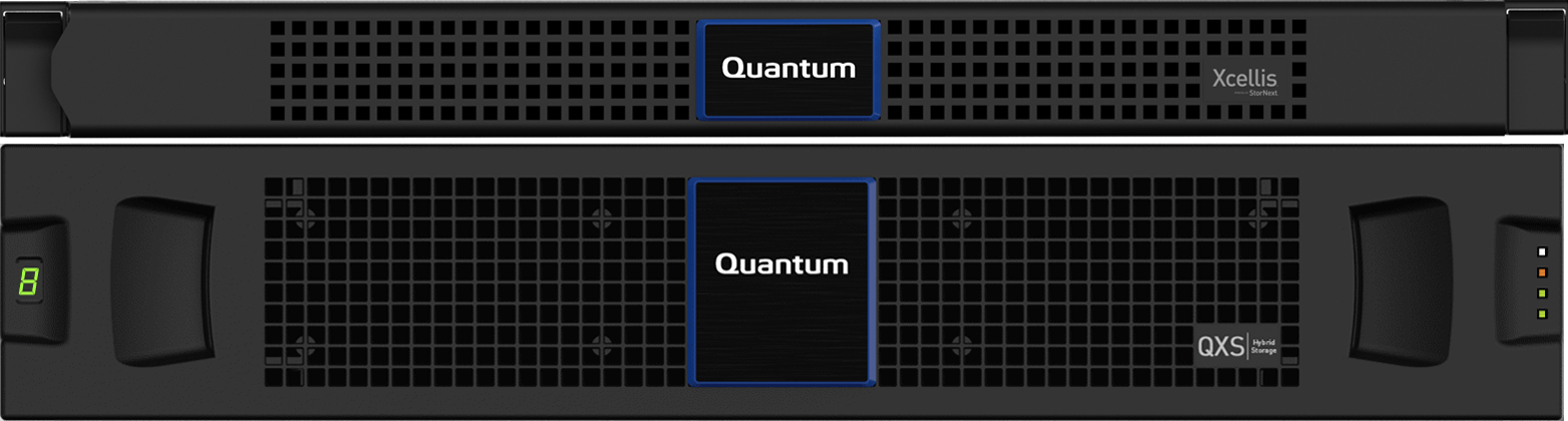

Figure 2: Minimum Xcellis Workflow Director (Gen 2)/QXS configuration: an Xcellis Workflow Director system configured witha single server node, and a single 2UQXS RAID, and no JBODs

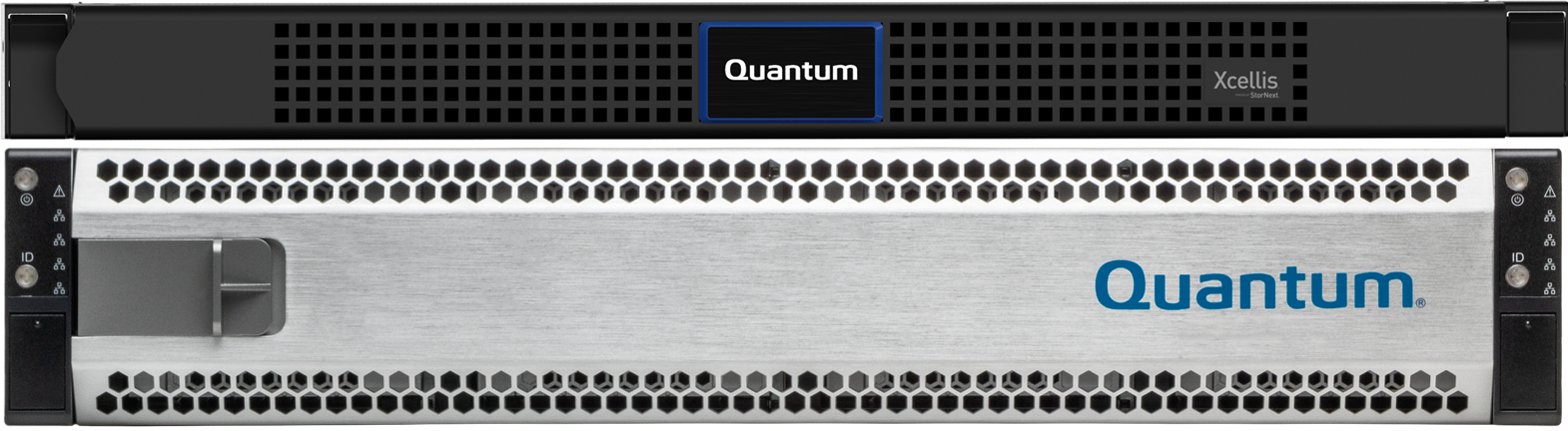

Figure 3: Typical Xcellis Workflow Director (Gen 2)/H2000/F2100 configuration: an Xcellis Workflow Director system configured witha single server node, and a single 2U H2000 RAID or F2100, and no JBODs

Figure 4: An Xcellis Workflow DirectorSystem Configured with Two Workflow Director Nodes, and a QXS 2U RAID Chassis

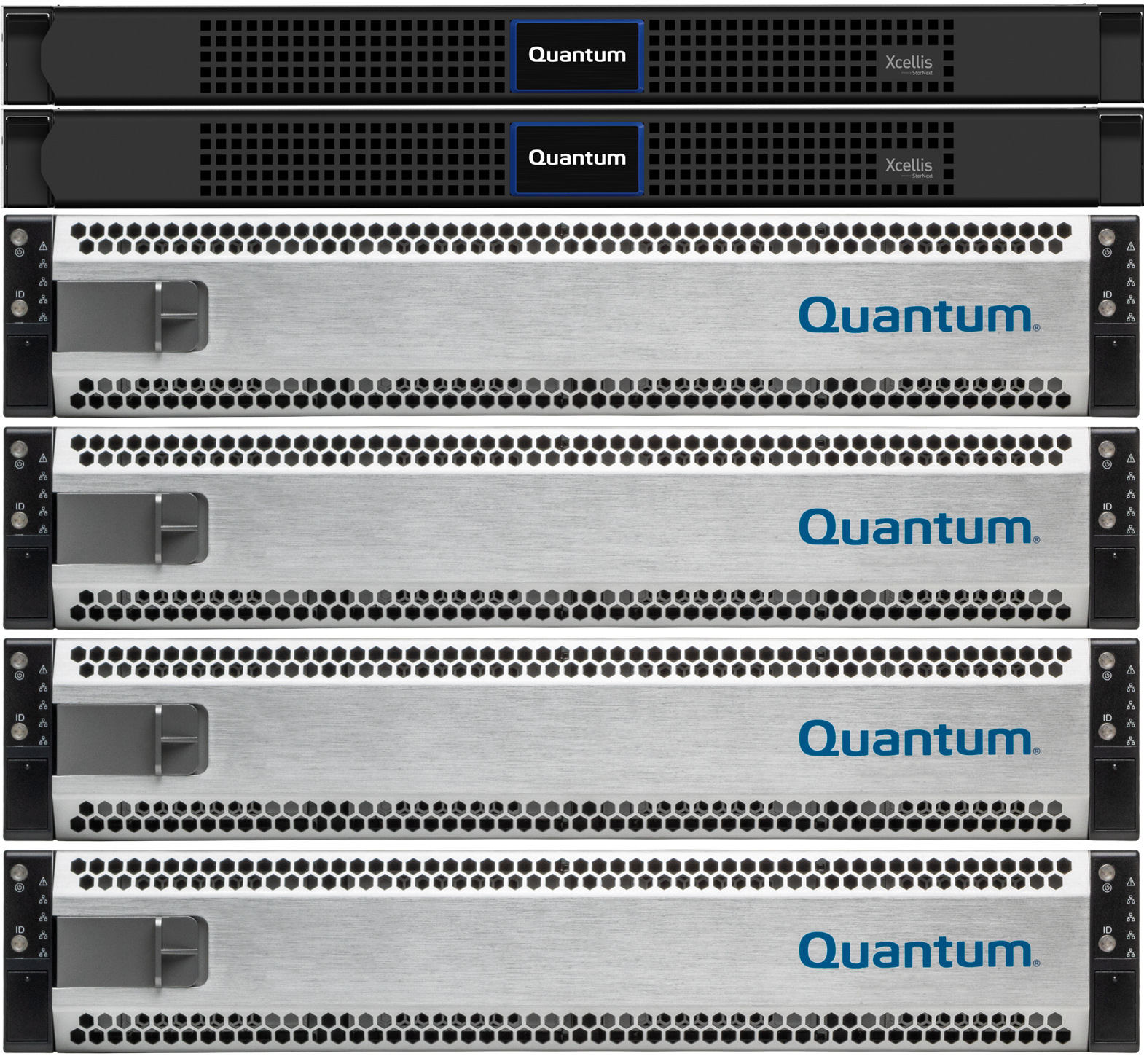

Maximum Xcellis Workflow Director (Gen 2)/H2000 configuration: H2000 configuration: an Xcellis Workflow Director system configured witha single server node, a single 2U H2000 RAID, and three 2U H2000 JBODs

Figure 5: An Xcellis Workflow Director (Gen 2) System Configured with Two Workflow Director Nodes, a QXS 2U RAID Chassis, and a QXS-456 Expansion Chassis

The system is offered with converged metadata and user data storage or with dedicated metadata storage in different configuration options. The following figures illustrate the supported configurations. Your storage configuration may be different than those shown here.

Figure 6: Two Server Nodes With Converged Metadata/User Data on H2000 Storage

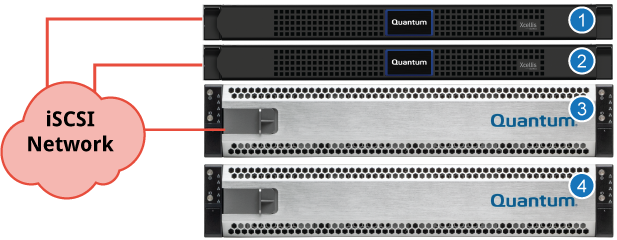

1. Server Node 1
2. Server Node 2
3. H2000 12 or 24-Drive RAID Chassis (metadata and user data)
4. H2000 12 or 24-Drive Expansion Chassis (metadata and user data)

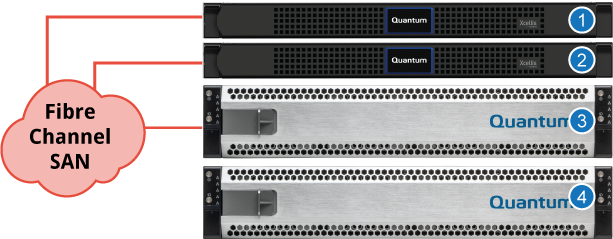

Figure 7: Two Server Nodes With Converged Metadata/User Data on QXS Storage

1. Server Node 1
2. Server Node 2
3. QXS 12 or 24-Drive RAID Chassis (metadata and user data)
4. QXS 12 or 24-Drive Expansion Chassis (metadata and user data)

The system is offered with converged metadata and user data storage or with dedicated metadata storage in different configuration options. The following figures illustrate the supported configurations. Your storage configuration may be different than those shown here.

Figure 8: Two Server Nodes with Converged Metadata/User Data Storage and iSCSI Connections

1. Server Node 1
2. Server Node 2
3. H2000 12 or 24-Drive RAID Chassis (metadata and user data)
4. H2000 12 or 24-Drive Expansion Chassis (metadata and user data)

Figure 9: Two Server Nodes with Converged Metadata/User Data Storage and iSCSI Connections

1. Server Node 1
2. Server Node 2
3. QXS 312-Drive RAID Chassis (metadata and user data)
4. QXS 312-Drive Expansion Chassis (metadata and user data)

The system is offered with converged metadata and user data storage or with dedicated metadata storage in different configuration options. The following figures illustrate the supported configurations. In the QXS example, a 56-Drive Chassis is used for user data. Your storage configuration may be different than those shown here.

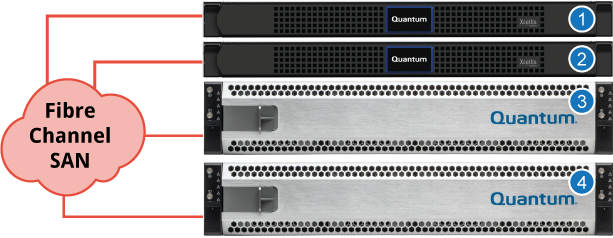

Figure 10: Two Server Nodes With Separate Dedicated Metadata and User Data Storage

1. Server Node 1
2. Server Node 2
3. H2000 24-Drive RAID Chassis (metadata-only)
4. H2000 RAID Chassis (user data)

Figure 11: Two Server Nodes With Separate Dedicated Metadata Storage and User Data on 56-Drive Storage

1. Server Node 1
2. Server Node 2
3. QXS 24-Drive RAID Chassis (metadata-only)
4. QXS-456 RAID Chassis (user data)

The system is offered with converged metadata and user data storage or with dedicated metadata storage in different configuration options. The following figures illustrate the supported configurations. Your storage configuration may be different than those shown here.

Figure 12: Two Server Nodes With Separate Dedicated Metadata and User Data Storage

Figure 13: Two Server Nodes With Separate Dedicated Metadata and User Data Storage

The system includes either a single server configuration or a two server node configuration (which provides high availability [HA] failover operation). The base configuration, comes with 64 GB server memory and supports up to 32 file systems. Memory upgrade kits are available which support additional file systems and the Dynamic Application Environment to host virtual machines on the system (see System Software: The Dynamic Application Environment) .The system provides unified file sharing using one or more of the following:

  • StorNext SAN
  • StorNext LAN
  • NAS (SMB/NFS)

Figure 14: Server Front View (with bezel)

Figure 15: Server Front View (without bezel; with a PERC RAID card; hardware RAID)

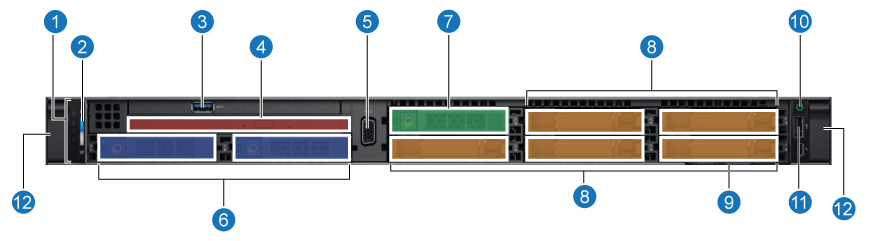

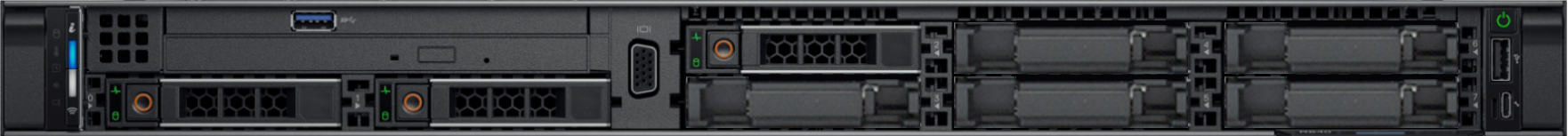

Figure 16: Server Front View (without bezel; no PERC RAID card; software RAID)

Figure 17: Server Front View (without bezel)

For expansion card options, see Supported Expansion Cards.

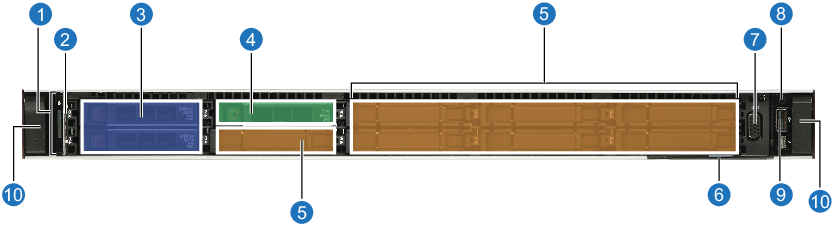

The front panel of the server node includes the following features and indicators.

Figure 18: Front panel – Xcellis Workflow Director (with a hardware RAID/PERC RAID card).

Item

Indicator, button, or connector

Icon

Description

1

Status LED indicators

n/a

Contains the status LED indicators. The status LEDs enable you to identify any failed hardware components. There are up to five status LEDs and an overall system health LED (Chassis health and system ID) bar.

2



System health and system ID indicator codes

n/a

Indicates the system health.
3 System drives n/a These two 2.5 inch hot-swappable SSDs contain the server Operating System, StorNext software, appliance code and all server features.
4 Scratch drive n/a This single 1 TB 2.5 inch hard drive is used by the server for scratch disk storage (temporary information used for firmware upgrades, StorNext Connect data, etc.).

5

7 additional drive bays

n/a

These drive bays are filled with drive blanks; they do not contain drives.

6

Service tag

n/a

This large pull-out tab contains the server Service Tag, and the StorNext System Serial Number.

7

Video connector

Used to connect a VGA display to the server.

8

Power button

Indicates if the server is turned on or off. Press the power button to manually turn the server on or off.

Note: When you turn off the server with the Power button, the server performs the equivalent of a Linux "-poweroff" (graceful shutdown) before powering off. For normal server operations, use the appropriate system Power Off procedure.

9

USB port

This is a 4-pin, USB 2.0-compliant port, and enables you to connect USB devices to the system.

10

Server release buttons

n/a

Use these buttons together to release the server from the rack, and pull the server out on its rails.

Figure 19: Front panel – Xcellis Workflow Director (with a software RAID/without PERC RAID card).



Indicator, button, or connector

Icon

Description

1

Status LED indicators

n/a

Contains the status LED indicators. The status LEDs enable you to identify any failed hardware components. There are up to five status LEDs and an overall system health LED (Chassis health and system ID) bar.

2



System health and system ID indicator codes

n/a

Indicates the system health.
3 USB port n/a This is a 4-pin, USB 2.0-compliant port, and enables you to connect USB devices to the system
4 DVD drive n/a Optical drive.

5

Video connector

Used to connect a VGA display to the server.
6 System boot drives n/a These two 2.5 inch hot-swappable SSDs contain the server Operating System, StorNext software, appliance code and all server features.
7 Scratch drive n/a This single 1 TB 2.5 inch hard drive is used by the server for scratch disk storage (temporary information used for firmware upgrades, StorNext Connect data, etc.).

8

5 additional drive bays

n/a

These drive bays are filled with drive blanks; they do not contain drives.

9

Service tag

n/a

This large pull-out tab contains the server Service Tag, and the StorNext System Serial Number.

10

Power button

Indicates if the server is turned on or off. Press the power button to manually turn the server on or off.

Note: When you turn off the server with the Power button, the server performs the equivalent of a Linux "-poweroff" (graceful shutdown) before powering off. For normal server operations, use the appropriate system Power Off procedure.

11

USB port

This is a 4-pin, USB 2.0-compliant port, and enables you to connect USB devices to the system.

12

Server release buttons

n/a

Use these buttons together to release the server from the rack, and pull the server out on its rails.

Note: The status LED indicators are always off and only turns on to a solid amber if any error occurs.

Number

Icon

Description

Condition
1

Drive indicator

The indicator turns solid amber if there is a drive error. • Check the System Event Log to determine if the drive has an error.
2

Temperature indicator

The indicator turns solid amber if the system experiences a thermal error (for example, the ambient temperature is out of range or there is a fan failure).
3

Electrical indicator

The indicator turns solid amber if the system experiences an electrical error (for example, voltage out of range, or a failed power supply unit [PSU] or voltage regulator).
4

Memory indicator

The indicator turns solid amber if a memory error occurs.

5

PCIe indicator

The indicator turns solid amber if a PCIe card experiences an error.

The system health and system ID indicator is located on the left control panel of your system, shown here in healthy, on condition:

System health and system ID indicator code

Condition
Solid blue Indicates that the system is turned on, system is healthy, and system ID mode is not active. Press the system health and system ID button to switch to system ID mode.
Blinking blue Indicates that the system ID mode is active. Press the system health and system ID button to switch to system health mode.
Solid amber Indicates that the system is in fail-safe mode. If the problem persists, contact Quantum Support.
Blinking amber Indicates that the system is experiencing a fault. Check the System Event Log or the LCD panel, if available on the bezel, for specific error message.

Each drive carrier has an activity LED indicator and a status LED indicator. The indicators provide information about the current status of the drive. The activity LED indicator indicates whether the drive is currently in use or not. The status LED indicator indicates the power condition of the drive.

  1. Drive activity LED indicator

  2. Drive status LED indicator

Drive status indicator code

Condition
Flashes green twice per second Identifying drive or preparing for removal.
Off

Drive ready for removal.

Note: The drive status indicator remains off until all drives are initialized after the system is turned on. Drives are not ready for removal during this time.
Flashes green, amber, and then turns off Predicted drive failure.
Flashes amber four times per second Drive failed.

Flashes green slowly

Drive rebuilding.

Solid green

Drive online.

Flashes green for three seconds, amber for three seconds, and then turns off after six seconds

Drive rebuild stopped.

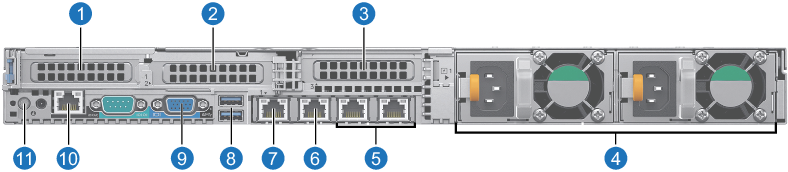

The rear panel of the server node includes the following features and indicators:

Item

Indicator, button, or connector

Icon

Description

1

PCIe Slot 1

n/a



The expansion slot(s) enable you to connect PCI Express expansion cards. See Supported expansion cards.

2



PCIe Slot 2

n/a
3

PCIe Slot 3

 n/a
4 PSUs (Power Supply Units) n/a Two hot-swappable power supplies that provide server power.

5a

1 GbE Metadata NIC ports

n/a

For attaching network connections for server metadata access.

6

1 GbE Management NIC port

n/a

 For accessing StorNext, StorNext Connect, and command line for server management functions over the network.

7

1 GbE Service NIC port

n/a

 For service and support use only.

8

USB 3.0 ports

The USB ports are 9-pin and 3.0-compliant. These ports enable you to connect USB devices to the system.

9

VGA port

Enables you to connect a display device to the system.

10

1 GbE Service NIC port

n/a

 For service and support use only.

11

System identification button

The System Identification (ID) button is available on the front and back of the systems. Press the button to identify a system in a rack by turning on the system ID button.

a Items 5, 6, and 7 are ports of the network daughter card, which is pre-installed in the system.

Note: DO NOT connect anything to the serial port connector on the rear of the system. If something is connected to the serial port, the server will be unable to boot when a reboot is initiated.

Each NIC on the back panel has indicators that provide information about the activity and link status. The activity LED indicator indicates if

data is flowing through the NIC, and the link LED indicator indicates the speed of the connected network.

NIC Indicators:

  1. Link LED indicator
  2. Activity LED indicator

Status

Condition
Link and activity indicators are off The NIC is not connected to the network.
Link indicator is green and activity indicator is blinking green The NIC is connected to a valid network at its maximum port speed and data is being sent or received.
Link indicator is amber and activity indicator is blinking green The NIC is connected to a valid network at less than its maximum port speed and data is being sent or received.
Link indicator is green and activity indicator is off The NIC is connected to a valid network at its maximum port speed and data is not being sent or received.

Link indicator is amber and activity indicator is off

The NIC is connected to a valid network at less than its maximum port speed and data is not being sent or received.

Link indicator is blinking green and activity is off

NIC identify is enabled through the NIC configuration utility.

AC power supply units (PSUs) have an illuminated translucent handle that serves as an indicator and DC PSUs have an LED that serves as

an indicator. The indicator shows whether power is present or a power fault has occurred.

  1. AC PSU status indicator/handle

Power indicator codes

Condition
Green A valid power source is connected to the PSU and the PSU is operational.
Blinking amber Indicates a problem with the PSU.
Blinking green When the firmware of the PSU is being updated, the PSU handle blinks green.
Blinking green and turns off

When hot-plugging a PSU, the PSU handle blinks green five times at a rate of 4 Hz and turns off. This indicates a PSU mismatch with respect to efficiency, feature set, health status, or supported voltage.
Not illuminated Power is not connected to the PSU.

The server has different network and Fibre Channel connection options depending on the expansion cards purchased.

Table 1: Slot 1 Expansion Card Options
Expansion Card Description

Supported Expansion Cards

Dual-Port, low-profile, 10/40/25/50/100 GbE NIC

Note: Dell/Nvidia Connect X-6 cards require StorNext 7.1.1 or later.

Note: Dell/Mellanox Connect X-5 En cards require StorNext 6.2.0 or later.
Dual-Port 10/25 GbE HBA/HCA with VPI (virtual protocol interconnect), low-profile
Quad-Port 10 GbE Base-T NIC, low-profile
Empty (n/a - slot cover installed)
Table 2: Slot 2 Expansion Card Options
Expansion Card Description

Supported Expansion Cards

Dual-Port 32 Gb Fibre Channel HBA (shown with SFPs installed), low-profile

Note: The Dell/QLogic QLE2772-SR-SP requires StorNext 7.0 or later

Quad-Port 16 GB Fibre Channel HBA, low-profile

Caution: While both tape and disk SAN may be supported on FC HBA cards in some storage environments, in others, the storage configuration may require separate/dedicated tape and disk SAN FC HBA cards (Example: IBM LTO drives using the lin_tape driver). See the documentation for your specific disk and/or tape storage to determine if you must have separate FC HBA cards for disk and tape.

Dual-Port, low-profile, 10/40/25/50/100 GbE NIC

Note: Dell/Nvidia Connect X-6 cards require StorNext 7.1.1 or later.

Note: Dell/Mellanox Connect X-5 En cards require StorNext 6.2.0 or later.
Dual-Port 10/25 GbE HBA/HCA with VPI (virtual protocol interconnect), low-profile
Quad-Port 10 GbE base-T NIC, low-profile
Empty (n/a - slot cover installed)
Table 3: Slot 3 Expansion Card Options
Expansion Card Description

Supported Expansion Cards

Dual-Port 32 Gb Fibre Channel HBA (shown with SFPs installed), low-profile

Note: The Dell/QLogic QLE2772-SR-SP requires StorNext 7.0 or later

Quad-Port 16 GB Fibre Channel HBA, low-profile

Caution: While both tape and disk SAN may be supported on FC HBA cards in some storage environments, in others, the storage configuration may require separate/dedicated tape and disk SAN FC HBA cards (Example: IBM LTO drives using the lin_tape driver). See the documentation for your specific disk and/or tape storage to determine if you must have separate FC HBA cards for disk and tape.

Dual-Port, low-profile, 10/40/25/50/100 GbE NIC

Note: Dell/Nvidia Connect X-6 cards require StorNext 7.1.1 or later.

Note: Dell/Mellanox Connect X-5 En cards require StorNext 6.2.0 or later.

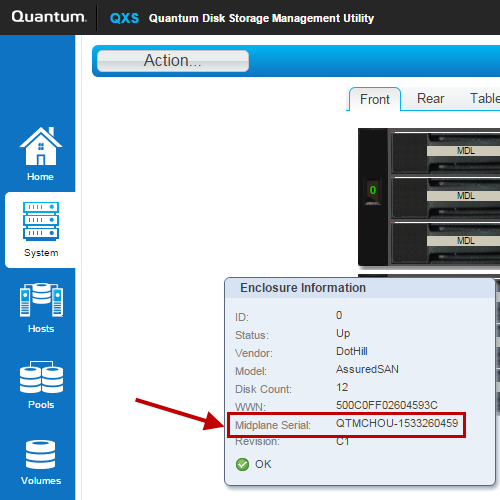

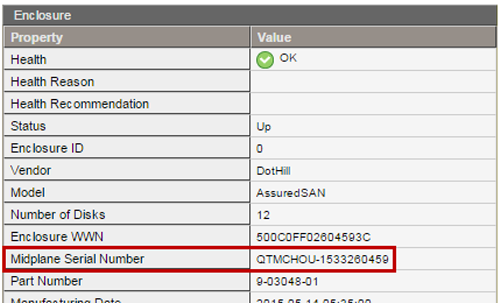

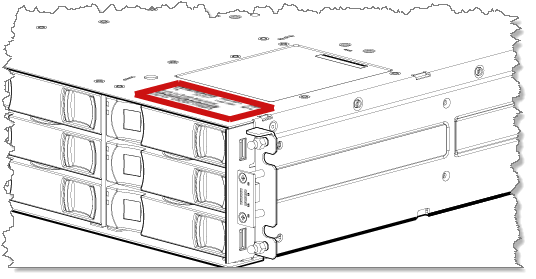

You can locate server identification numbers, including the StorNext System Serial Number (SSN) and the Service Tag number, in the following locations:

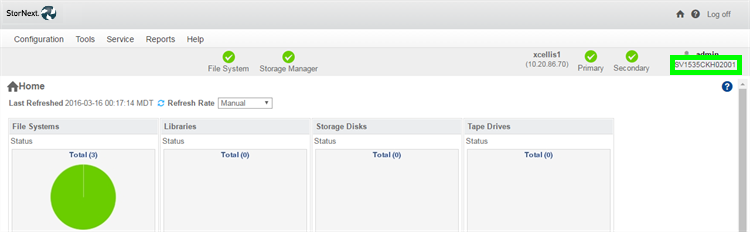

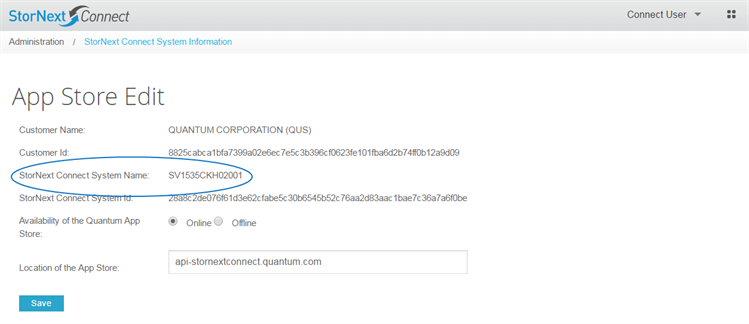

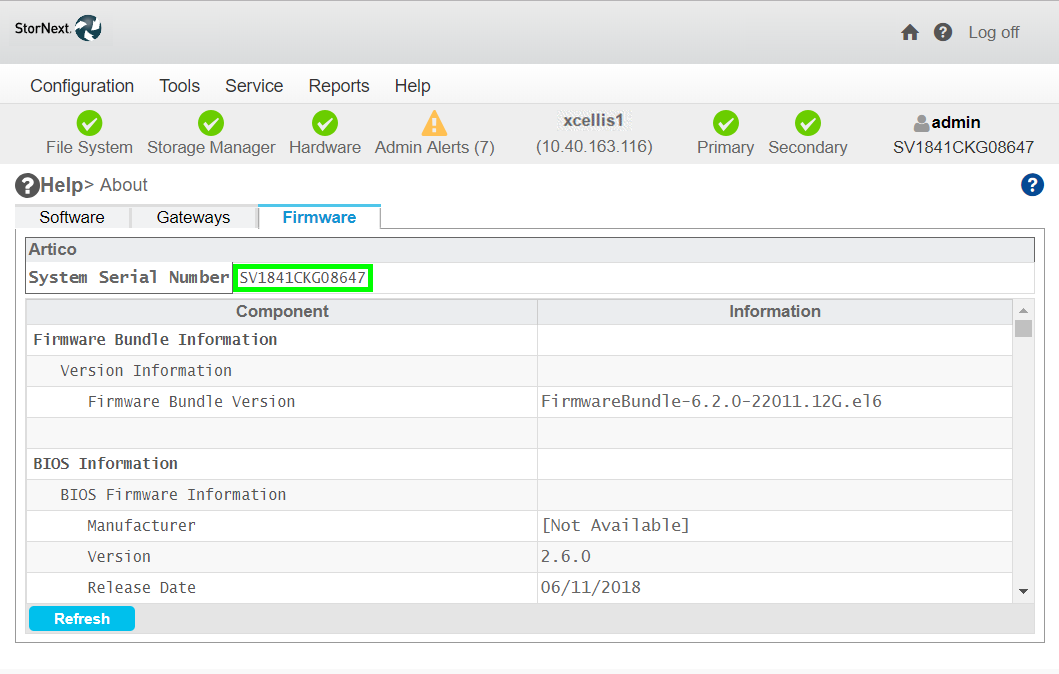

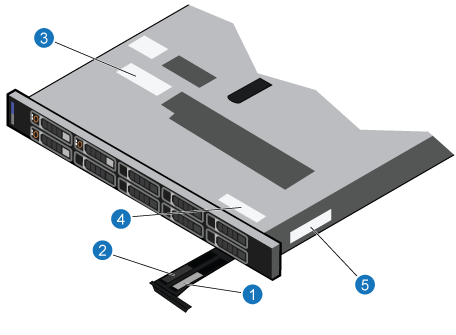

The StorNext System Serial Number and Service Tag number are located in different locations on the server. The LCD Display Panel, located on the front of the server, displays both the model type and System Serial Number server nodes. In addition, both the System Serial Number and the Service tag number are located in multiple locations on labels on the server chassis as shown in the following image:

1. System Serial Number Label (Service Tag pullout tab)
2. Service Tag Label (Service Tag pullout tab)
3. Server Node Identifier (Node 1 or Node 2) and Service Tag Label
4. System Serial Number Label (top)
5. System Serial Number Label (right-hand side)

The System Serial Number is displayed within the StorNext GUI in the following locations:

The System Serial Number is displayed as the StorNext Connect System Name on the Admin > This System page.

You can use the system command line to access the StorNext System Serial Number.

Steps

  1. Open an SSH connection to the appropriate server and use the IP address assigned to the node on the Management or LAN Client network, or use the Service Port IP address.

    • Node 1 : 10.17.21.1 (dual-server node systems)
    • Node 2 : 10.17.21.2 (dual-server node, or supported "HA-ready" single-server node StorNext appliances)

  2. Initiate an ssh session to the system using Terminal or PuTTY:
    1. Log in to the command line using the following credentials:
      • User name: stornext
      • Password: <stornext user account password>

        Note: "password" is the default password for the stornext user account. If the password has been changed, use the current password. Beginning with StorNext 7.0.2, you must change the default password for the stornext user account. As of StorNext 7.0.2, the first time you log in, you will be prompted to change the password to a different one.

    2. Enter sudo rootsh to gain root user access.
    3. Enter the password for the stornext user account again.
  1. Enter the cvfsid command.

    2. The system returns the following information:

    <server_MAC_address> <server_OS> <server_name>

    Example:

    ECF4BCDECC0E linux 0 xcellis13

  2. Close the SSH session for the node.

See H2000 Hardware Overview.

See F2100 Hardware Overview.

The Xcellis Workflow Director system is offered with converged metadata and user data storage or with dedicated metadata storage in different configuration options. The following sections show the front views, followed by supported configurations and drive options. Your storage configuration may be different than those shown.

Figure 20: QXS 12-Drive and QXS 24-Drive - Front (with bezel)

Figure 21: QXS 12-Drive - Front (without bezel)

Figure 22: QXS 24-Drive - Front (without bezel)

Figure 23: QXS-456 - Front (with bezel)

Figure 24: QXS-456 - Front (without bezel)

Figure 25: QXS 12G 2U 12-drive and 24-drive - Front (with bezel)

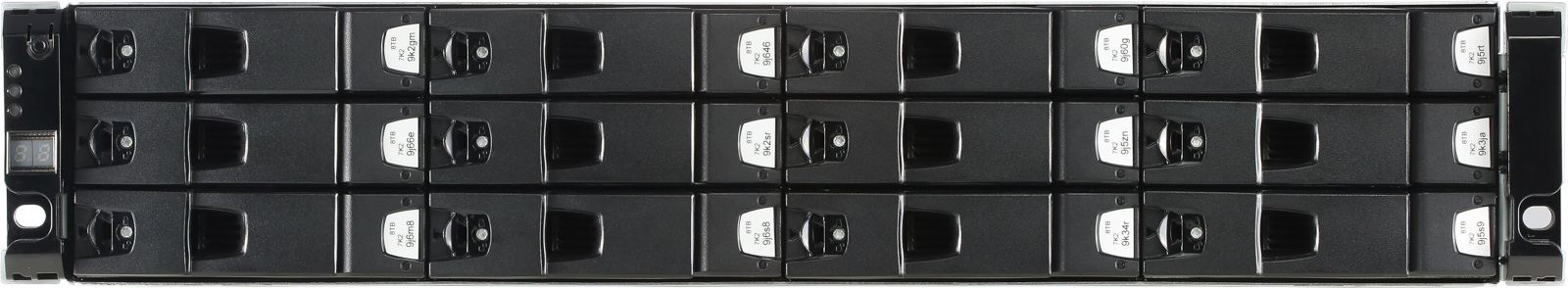

Figure 26: QXS 12G 2U 12-drive - Front (without bezel)

Figure 27: QXS 12G 2U 24-drive - Front (without bezel)

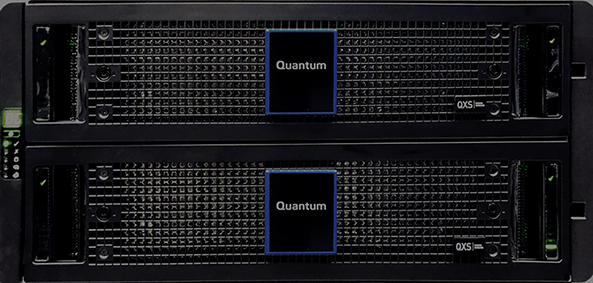

Figure 28: QXS 12G 5U 84-drive - Front (with bezels)

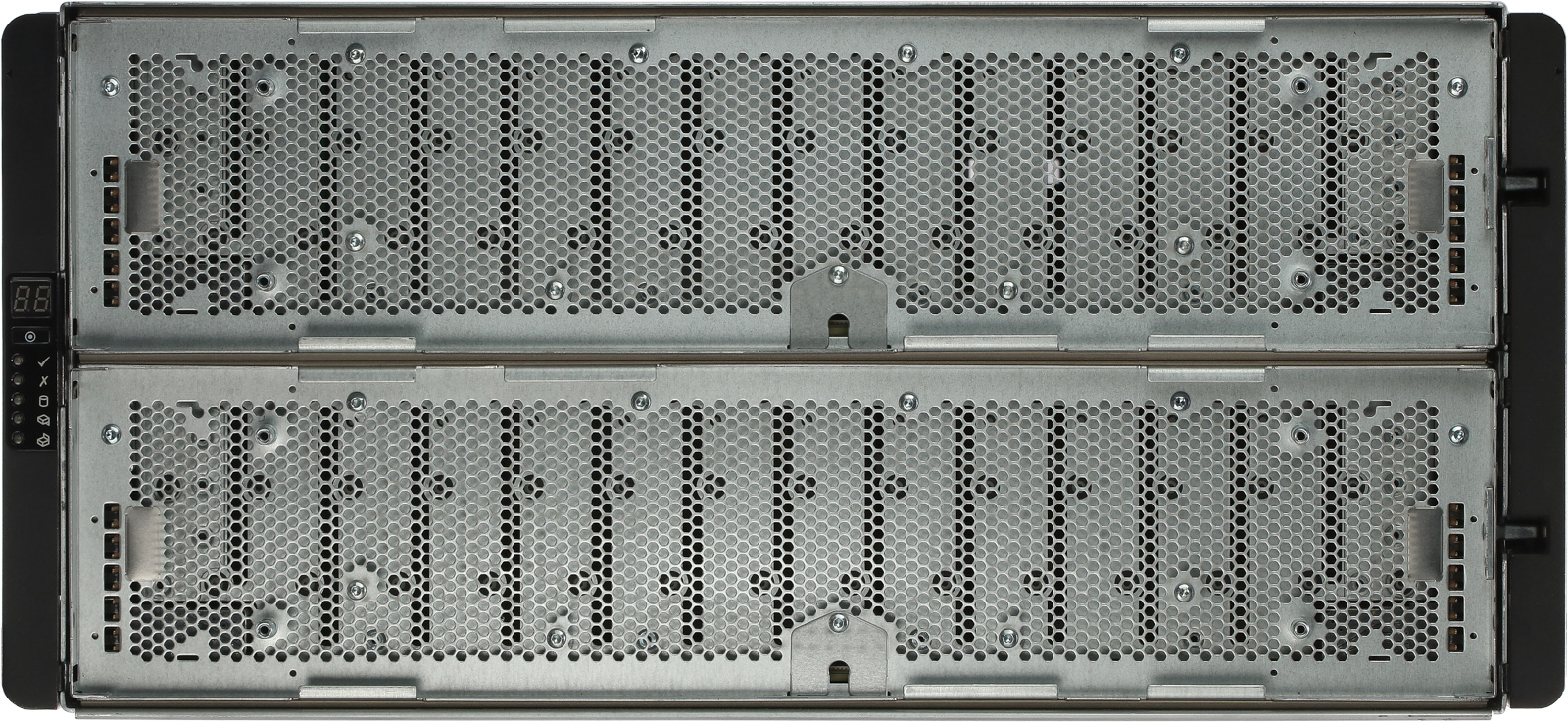

Figure 29: QXS 12G 5U 84-drive - Front (without bezels)

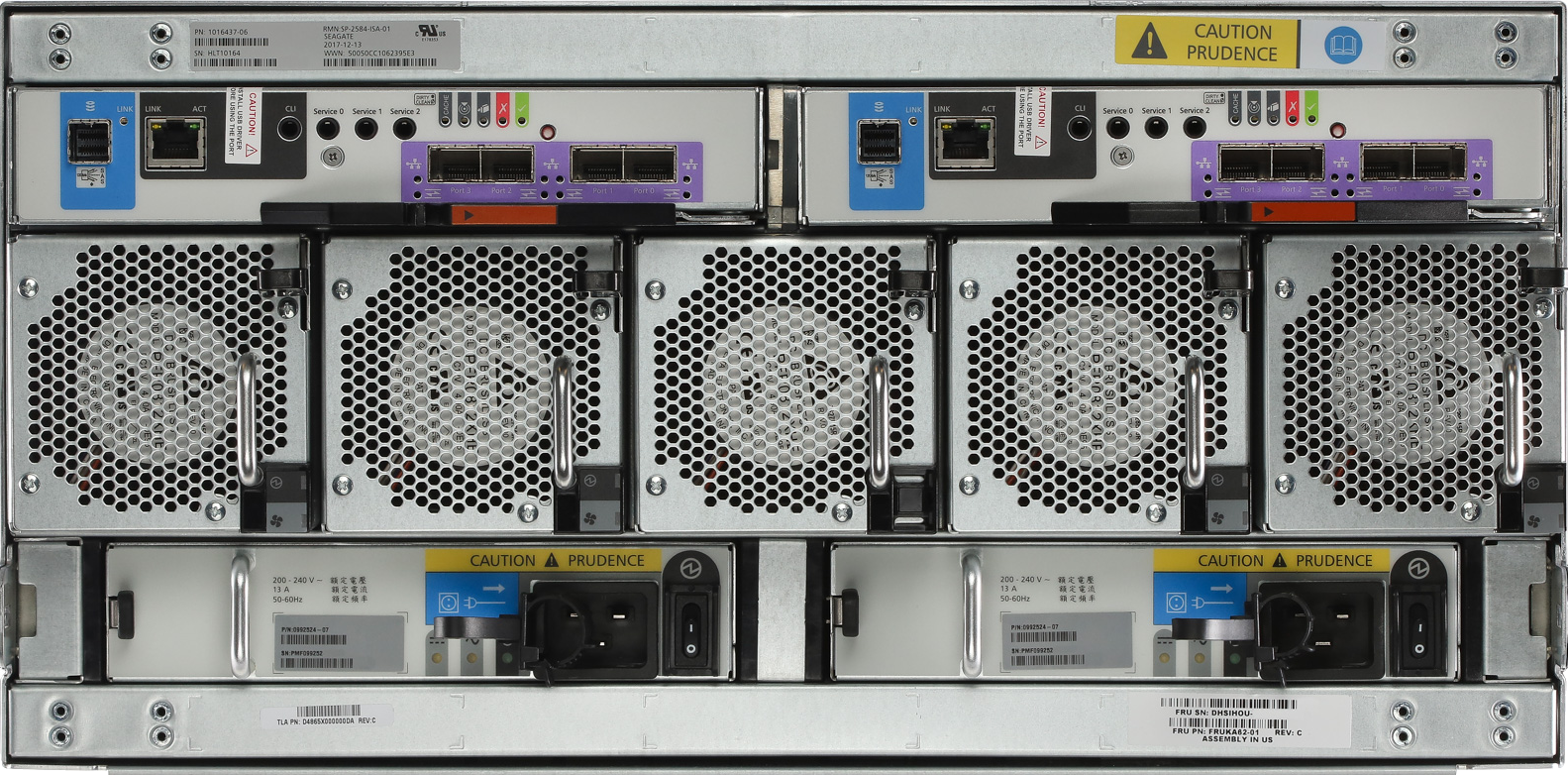

Figure 30: QXS 12G 5U 84-drive RAID - Rear

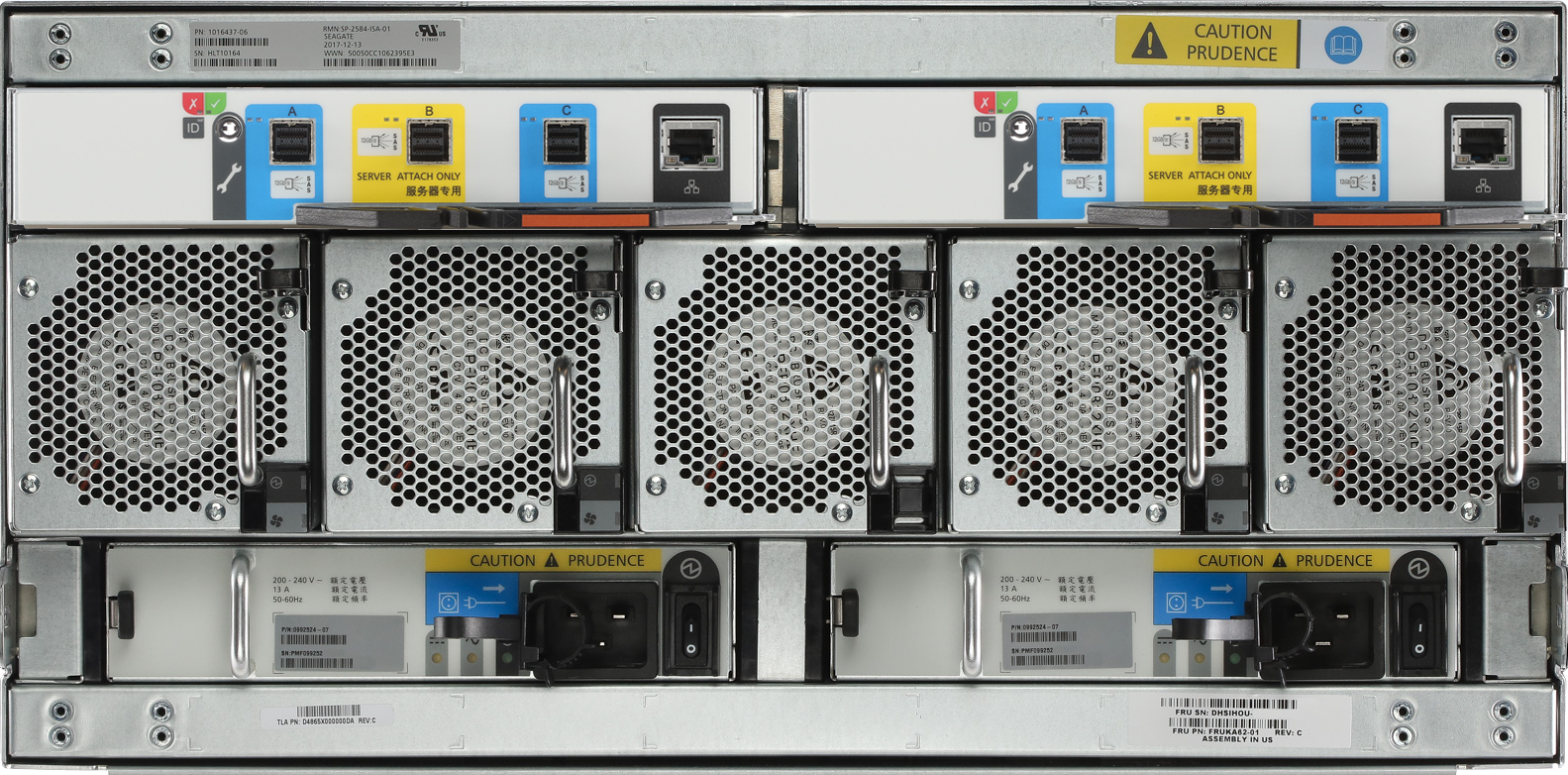

Figure 31: QXS 12G 5U 84-drive Expansion - Rear

Figure 32: QXS 12-Drive and QXS 24-Drive - Front (with bezel)

Figure 33: QXS 12-Drive - Front (without bezel)

Figure 34: QXS 24-Drive - Front (without bezel)

Figure 35: QXS Hybrid Storage 456 - Front (with bezel)

Figure 36: QXS Hybrid Storage 456 - Front (without bezel)

For QXS 12G systems, see Front and Rear Views of QXS 12G Systems on page 8 in the QXS G2 Hardware Installation and Maintenance Guide.

QXS 2U drive chassis provide include a bezel sub-assembly that attaches to the front panel of the chassis. The bezel, comprised of a vented cover attached to an electro-magnetic interference (EMI) shield, is pre-assembled and packed within a box contained in the chassis master shipping container. The bezel might include a removable air filter that can be serviced or replaced. Instructions for attaching/removing the bezel, and for servicing or replacing the air filter, are provided in the QXS Bezel Installation Guide.

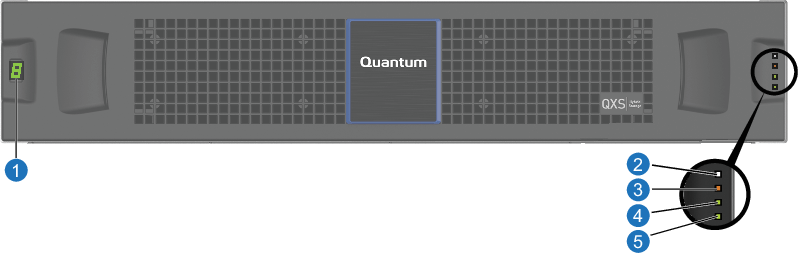

Figure 37: 2U Drive Chassis (Bezel Installed)

1. Chassis ID LED
2. Chassis Status LED: Unit Locator
3. Chassis Status LED: Fault/Service Required
4. Chassis Status LED: FRU OK
5. Chassis Status LED: Temperature Fault

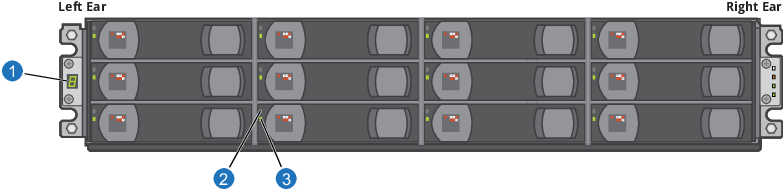

Figure 38: 2U12 Drive Chassis (Bezel Removed)

1. Chassis ID LED
2. Drive Status LED: Fault
3. Drive Status LED: Power/Activity

Not Shown - 3.5" Drive Blank

Figure 39: 2U Drive Chassis (Bezel Installed)

1. Chassis ID LED
2. Chassis Status LED: Unit Locator
3. Chassis Status LED: Fault/Service Required
4. Chassis Status LED: FRU OK
5. Chassis Status LED: Temperature Fault

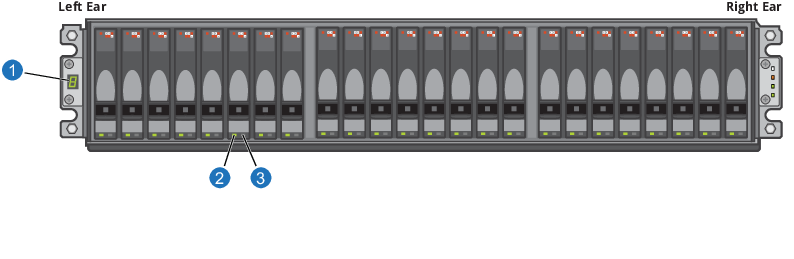

Figure 40: 2U24 Drive Chassis (bezel removed)

1. Chassis ID LED
2. Drive Status LED: Power/Activity
3. Drive Status LED: Fault
Not Shown - 2.5" Drive Blank

The diagram and table below display and identify important component items that comprise the rear panel layout of a QXS RAID Chassis. The following image shows a representative example of RAID chassis models included in the product series.

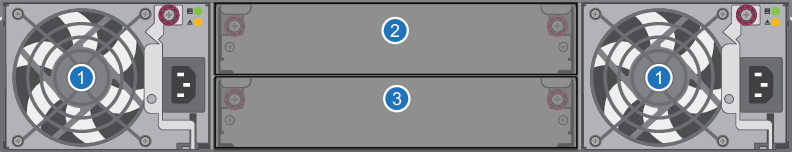

Figure 41: 12 and 24 Drive RAID Chassis: Rear Panel Layout



1. AC Power Supplies (qty. 2)
2. I/O Controller Module A
(see Controller I/O Module – Rear Panel Components)
3. I/O Controller Module B
(see Controller I/O Module – Rear Panel Components)

The Controller I/O Module can be configured with converged network controller (CNC) ports and SFPs.

Ports (SFP+ used with FC or iSCSI connections)

CNC ports:

  • 4/8/16 Gb FC
  • 10GbE iSCSI aiWARE for Xcellis systems DO NOT support this port type

The following figures show CNC ports configured with SFP+ transceivers that support either 4, 8, or 16 Gb Fibre Channel, or 10 GbE iSCSI Host connections. The SFP form factor is the same, and the optical connections look identical, but the 10 GbE iSCSI is a different SFP. Refer to the LEDs that apply to the specific CNC ports in your controller.

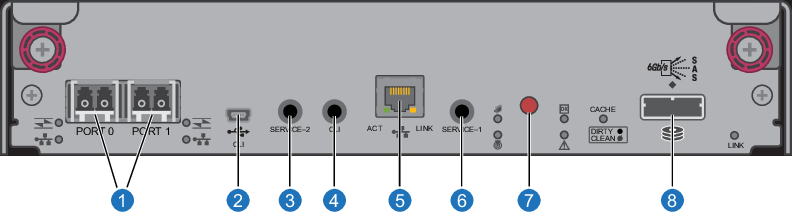

Figure 42: Controller I/O Module with FC or iSCSI Host CNC Ports



1. FC or iSCSI CNC Ports (supports SFP+ transceivers; used for host connection).

(These ports can be used without SFP+ transceivers, using Twinax cables instead).

2. CLI Port (USB - Type B)
3. Service Port 2 (Service Personnel Use Only)
4. Reserved for Future Use
5. Network Port
6. Service Port 1 (Service Personnel Use Only)
7. Disabled Button (used by engineering only)
(Sticker shown covering the opening)
8. Mini-SAS Expansion Port

2 drive expansion chassis support 12 x 3.5" Large Form Factor (LFF) drives for expansion of storage capacity. The 24 drive expansion chassis support 24x2.5" Small Form Factor (SFF) drives for expansion of storage capacity. These chassis use mini-SAS (SFF-8088) connectors to facilitate attachment to the RAID Chassis and allow for additional back-end SAS expansion attachment(s).

Note: Refer to the Release Notes for the number of drives and Expansion Chassis supported with each RAID Chassis.

Figure 43: 12 and 24 Drive Expansion Chassis

1. Power supplies (AC shown)
2. Expansion I/O Module A
3. Expansion I/O Module B

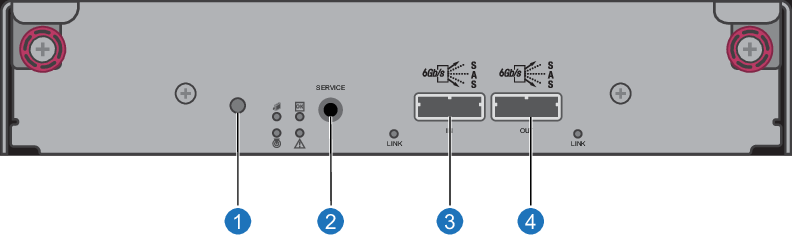

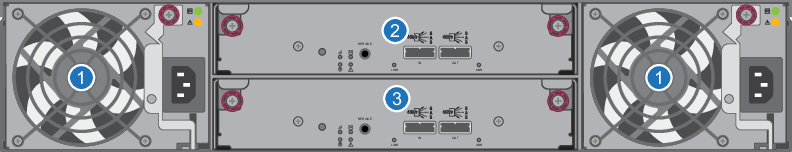

Figure 44: Expansion I/O Module

1. Disabled Button (used by engineering/test only)

2.Service Port (used by service personnel only)

3. Mini-SAS In Port

4. Mini-SAS Out Port

QXS 2U drive chassis provide include a bezel sub-assembly that attaches to the front panel of the chassis. The bezel, comprised of a vented cover attached to an electro-magnetic interference (EMI) shield, is pre-assembled and packed within a box contained in the chassis master shipping container. The bezel might include a removable air filter that can be serviced or replaced. Instructions for attaching/removing the bezel, and for servicing or replacing the air filter, are provided in the QXS Bezel Installation Guide.

Caution: Whether configured with or without an air filter, to ensure adequate EMI protection for the drives, the bezel should be properly installed while the chassis is in operation.

Figure 45: 2U Drive Chassis (Bezel Installed)

1. Chassis ID LED
2. Chassis Status LED: Unit Locator
3. Chassis Status LED: Fault/Service Required
4. Chassis Status LED: FRU OK
5. Chassis Status LED: Temperature Fault

Figure 46: 2U12 Drive Chassis (Bezel Removed)

1. Chassis ID LED
2. Drive Status LED: Fault
3. Drive Status LED: Power/Activity

Not Shown - 3.5" Drive Blank

Figure 47: 2U Drive Chassis (Bezel Installed)

1. Chassis ID LED
2. Chassis Status LED: Unit Locator
3. Chassis Status LED: Fault/Service Required
4. Chassis Status LED: FRU OK
5. Chassis Status LED: Temperature Fault

Figure 48: 2U24 Drive Chassis (bezel removed)

1. Chassis ID LED
2. Drive Status LED: Power/Activity
3. Drive Status LED: Fault
Not Shown - 2.5" Drive Blank

The diagram and table below display and identify important component items that comprise the rear panel layout of a QXS RAID Chassis. The following image shows a representative example of RAID chassis models included in the product series.

Figure 49: 12 and 24 Drive RAID Chassis: Rear Panel Layout



1. AC Power Supplies (qty. 2)

2. Controller Module A

3. Controller Module B

A RAID chassis accommodates two AC power supplies (CRU) within the two power supply slots (Callout 1 above). RAID Chassis accommodate two controller modules (CRU) of the same type within the Controller I/O Module slots (Callouts 2 and 3 above).

Caution: All QXS configurations are dual-controller. Single-controller support is provided only when a controller fails over to its partner controller. A controller module must be installed in each Controller I/O Module slot to ensure sufficient airflow through the chassis during operation.

The I/O Controller Module has two model types, converged network controller (CNC) ports or mini-SAS HD. The models can be configured as follows:

  • Host CNC ports configured with SFPs supporting the following:
    • 4/8/16 Gb FC
    • 10GbE iSCSI
  • Host interface ports configured with 12 Gbit/s mini-SAS HD (SFF-8644) connectors.

The following figure shows CNC ports configured with SFP+ transceivers that support 4, 8, or 16 Gb FC, or 10 GbE iSCSI connections. The SFPs look identical. Refer to the CNC LEDs that apply to the specific configuration of your CNC ports.

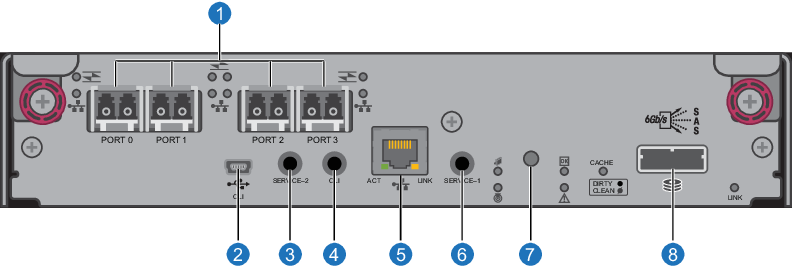

Figure 50: Controller I/O Module with FC or iSCSI Host CNC Ports

1. CNC FC or iSCSI with SFP+ Ports (used for host connection or replication; supports SFP+ FC transceivers)
2. CLI Port (USB - Type B)
3. Service Port 2 (Service Personnel Use Only)
4. Reserved for Future Use
5. Network Port
6. Service Port 1 (Service Personnel Use Only)
7. Disabled Button (used by engineering only)
(Sticker shown covering the opening)
8. Mini-SAS Expansion Port

12 drive Expansion Chassis support 12 x 3.5" Large Form Factor (LFF) drives for expansion of storage capacity. The 24 drive Expansion Chassis support 24x2.5" Small Form Factor (SFF) drives for expansion of storage capacity. These chassis use mini-SAS (SFF-8088) connectors to facilitate attachment to the RAID Chassis and allow for additional backend SAS expansion attachment(s).

Note: Refer to the Release Notes for the number of drives and Expansion Chassis supported with each RAID Chassis.

Figure 51: 12-Drive and 24-Drive Expansion Chassis

1. Power supplies (AC shown)
2. Expansion I/O Module A
3. Expansion I/O Module B

Figure 52: Expansion I/O Module

1. Disabled Button (used by engineering/test only)

2.Service Port (used by service personnel only)

3. Mini-SAS In Port

4. Mini-SAS Out Port

There are a couple ways to find System Serial Numbers for your QXS chassis:

If you need Quantum support, you will need your system serial number

The system serial number is located on a label attached to the chassis (upper right-hand front corner, top of the chassis) as shown here, outlined in red (12-drive chassis shown):

The following illustration provides a representative example of a serial number label on a chassis.

System serial number in the example: QTMCHOU-12345AB678

In the Disk Storage Management Utility (V3), you will find the system serial numbers for each chassis by doing the following:

  1. Login to the Disk Storage Management Utility (V3).

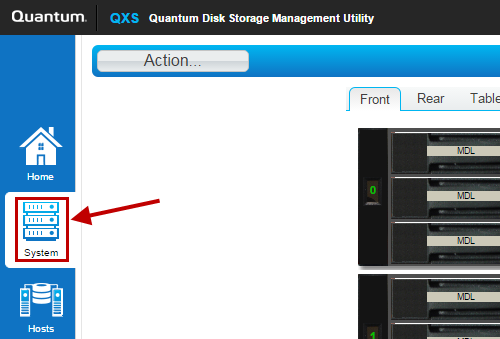

  2. On the left side of the page, click System, as shown here:

  3. Move your mouse and hover over the image of the chassis you need the serial number for, as shown here:

In the Disk Storage Management Utility (V2), you will find the system serial numbers for each chassis by doing the following:

  1. Login to the Disk Storage Management Utility (V2).
  2. On the left side of the page, cascade open the section for the System Name, the Physical section, and click on the Enclosure number, as shown here (Example: selecting Enclosure 0):

  3. On the right side of the page, under Enclosure Overview, the System Serial Number is called the Midplane Serial Number for the chassis, as shown here:
