Check File System

Before you perform a file system expansion using the GUI’s File System Expansion option that runs cvupdatefs (journal moves or changes), a metadata backup should be available or a cvfsck is recommended. After these procedures, Quantum recommends you run cvfsck of the resulting file system.

When you use the GUI’s Add a Stripe Group or Offload a Stripe Group features (that run sgadd or sgoffload, respectively), you do not need to run cvfsck. When you use the GUI’sTools > File Systems > Migrate Data Migrate… option (which runs snfsdefrag), you do not need to run cvfsck.

When you migrate metadata by any method, Quantum recommends you run cvfsck AFTER the migration completes. Contact Quantum Support if any required metadata updates are reported by cvfsck BEFORE you apply them.

For detailed cvfsck output, including histograms, progress updates, and improved performance, run cvfsck from the CLI. For maximum performance, first run cvfsck -q <file system name> to determine how much RAM running cvfsck consumes if passed the -F option.

Note: cvfsck -q runs very quickly and does not require that you stop the file system.

Next, check how much system RAM is available with free -h. If you have sufficient available RAM, run cvfsck with the -F option to speed up the check. The use of -m4g (metadata cache) and -T /usr/adic/HAM/shared (temporary file location) is also recommended, though the fastest file system (that’s not the one being checked) is recommended (which is often, but not always, the shared file system). The suggested command is therefore:

Other options, such as -v (for verbose output), can be passed to cvfsck as necessary. Be careful to not make the -m option too large (more than 4g is rarely necessary), as it contends for the memory being used by the -F option and might actually slow the check.

Also, cvfsck could consume a significant amount of space in /tmp (or, the file system specified with -T). Use cvfsk -q to get an estimate of the required space.

Certain file system maintenance tasks require an amount of free-unused disk space to allow the operation to be completed. For example these maintenance tasks could include:

• Repairing the file system using the command, cvfsck; space used for this can be specific on an alternate file system.

  • The command, cvfsck, uses a combination of scratch storage space and in memory caching to optimize its operation. The location of the scratch storage can be controlled using the option, -T directory. The option, -T directory, specifies the directory where all temporary files created by cvfsck are placed. If this option is omitted, then all temporary files are placed in the system's default temporary folder.

    Note: The command, cvfsck, does honor the use of TMPDIR/TEMP environment variables.

  • The command, cvfsck, attempts to estimate the amount of space it consumes based on the amount of metadata in the file system, and checks the amount of available space at the designated location. If there is less than the estimated amount, then a warning is issued and you are asked if you wish to proceed or specify a different location.

  • The command, cvfsck, does not require free space in the actual file system, unless it is repairing damage which requires reconnecting inodes to the file system. This may require an amount of available metadata space to complete successfully.

• Defragmentation operations also require additional space.
• Data migration operations also require space.

Quantum recommends a small percentage of the file system in question should be kept free. Running at high levels of capacity may induce additional levels of fragmentation.

For pre-StorNext 5 file systems, Quantum strongly recommends you upgrade, as you may need additional space for these maintenance operations and upgrades.

For more information about file system expansion, refer to the StorNext online help.

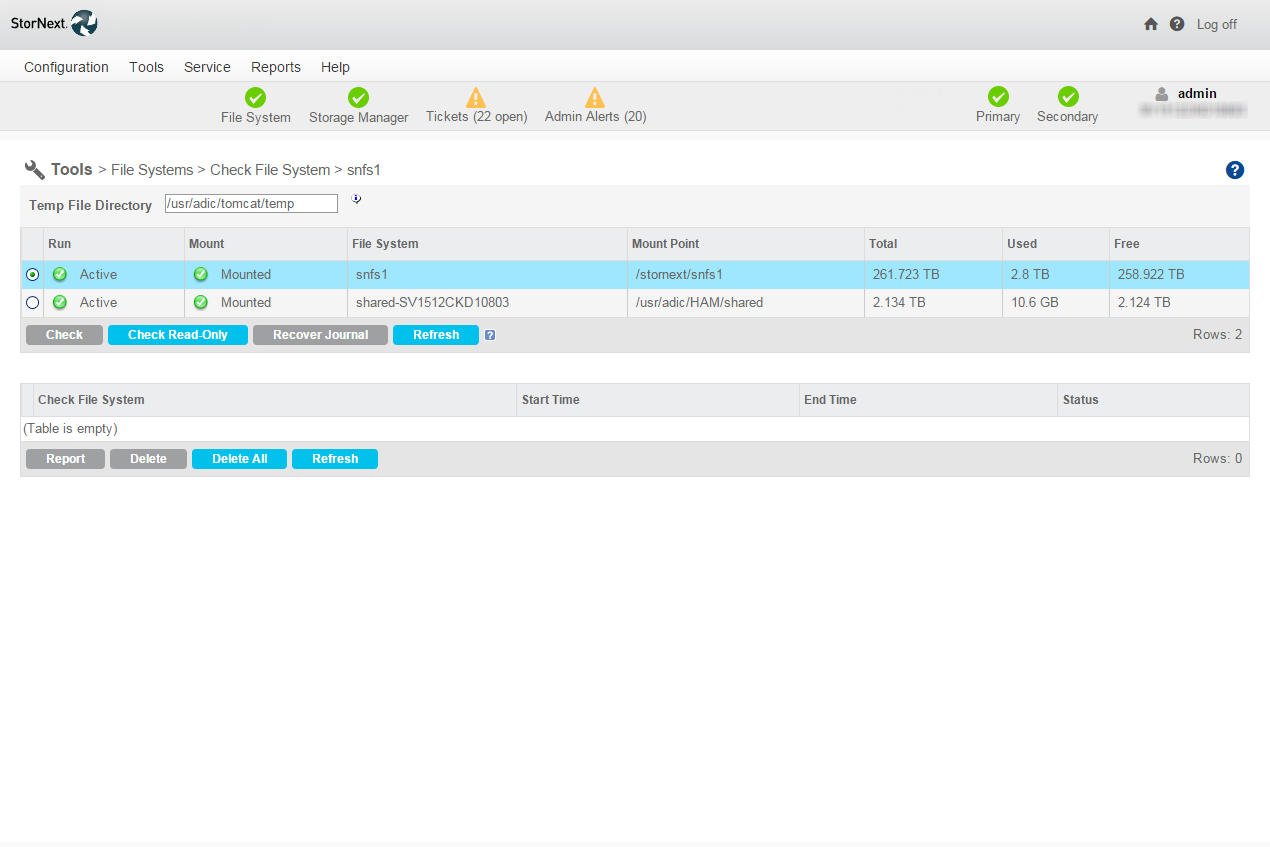

There are two ways to check file systems:

• Checking while the file system is offline
• Checking while the file system is active

When the file system is offline, you can run the check in either traditional mode or read-only mode. Read-only mode typically completes faster, but is not as thorough.

When the file system is active, you must run the check in read-only mode. The advantage of this method is that you don’t have to take the file system offline to run the check.

Note: Running a check on an active file system could result in false errors which occur because you are running the check while the file system is still running.

Whenever you run the check in read-only mode, Quantum strongly recommends also running the Recover Journal step before you check the file system. Running Recover Journal ensures that all operations have been committed to disk, and that the metadata state is up to date.

Regardless of which method you choose to check the file system, you should plan carefully when to run a file system check and plan accordingly.
