Reboot & Shutdown

The Reboot & Shutdown page allows you to reboot or shut down the DXi9200.

To access the Reboot & Shutdown page, click the Utilities menu, and then click the Reboot & Shutdown tab.

Caution: Before shutting down the DXi9200, make sure that all backup and replication jobs (as source and target) are finished, and that space reclamation activity is complete.

To reboot or shutdown the DXi9200:

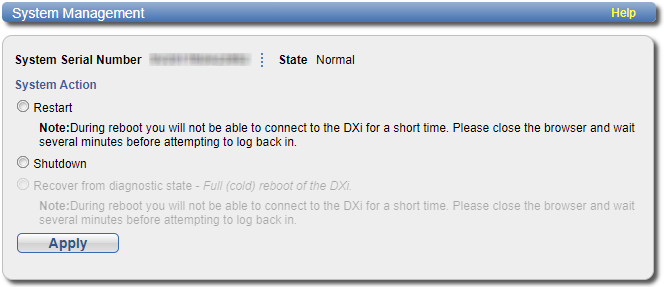

  1. Under System Action, select an option:

    Restart

    Reboots the DXi9200.

    Rebooting the system closes the Web browser connection. You must log on again after the system has rebooted.
    Shutdown

    Shuts down the DXi9200.
    Recover from diagnostic state - Full (cold) reboot of the DXi9200

    (Only available when the node is in limited/diagnostic mode). Performs a full reboot of the system.

  2. Click Apply.
  3. Close the browser window.

DXi9200 Shutdown Time

Shutting down the system can take up to 15 minutes. Only the node will completely shut down. When rebooting, the system can take approximately 30 minutes to start up, depending on the amount of installed storage capacity.
