Locating DXi9200 Serial Numbers

You will need the system serial number, the Node serial number, and the Array module serial number at various times:

System Serial Number	You need this number to contact Quantum Support or to add a licensed feature.
Node Serial Number	You need this number for a Node replacement component.

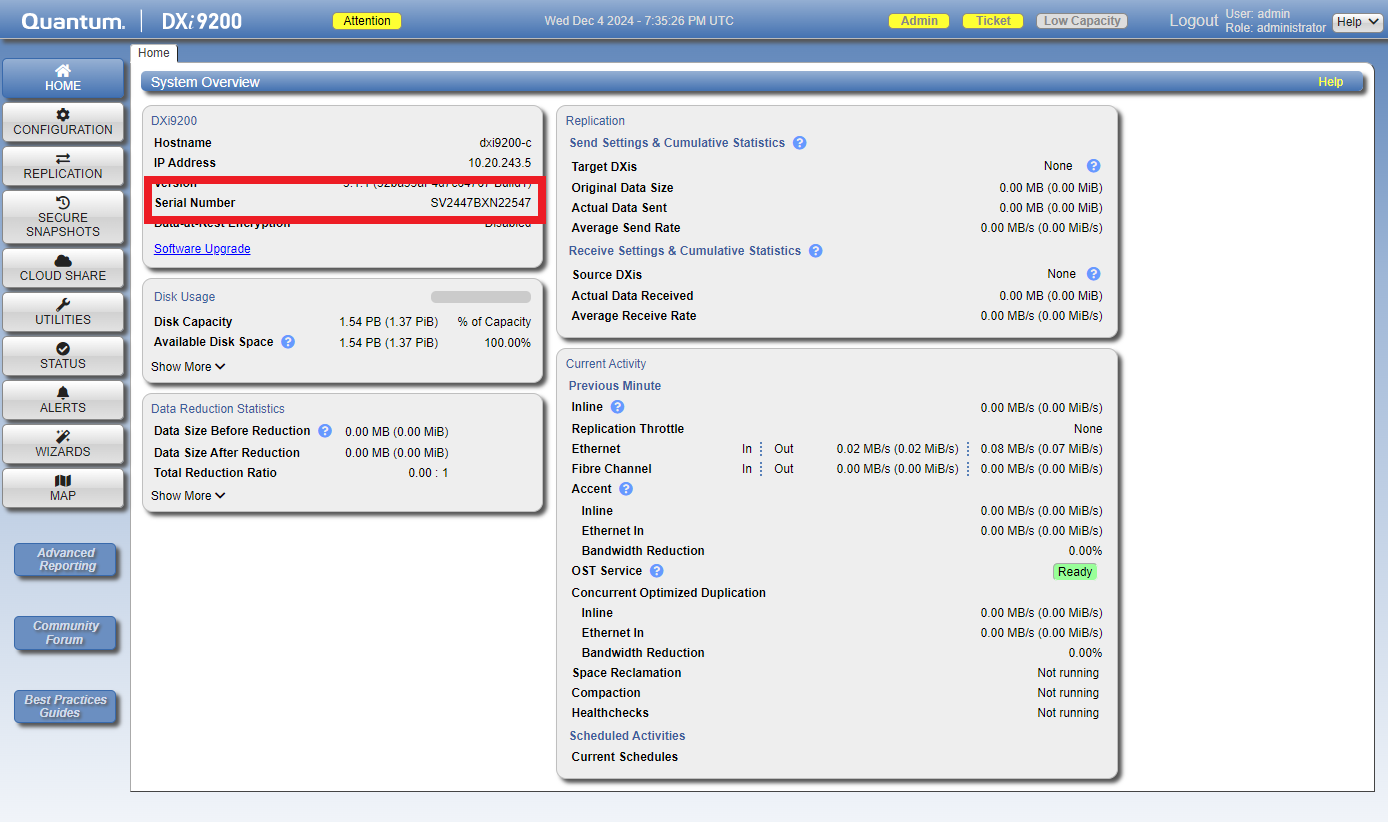

You can locate the system serial number on the Home page of the remote management console.

You can also locate the system serial number, the Node serial number, and the Array and Expansion module serial numbers by looking at the physical components.

The system serial number is located on the pull-out information tag on the front of the Node. The text Service Call System Serial Number appears on the label.
The Node serial number is located to the left of the SAS ports on the rear of the Node. It is the same as the Node service tag.
The Array module (RBOD) serial number is located on the rear of the module.

Note: The system serial number also appears on the location ID label that is affixed to the lip on the rear of the Node and each Expansion module.

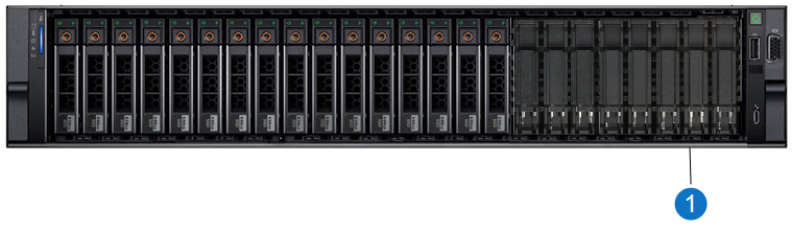

DXi9200 Node Information Tag

1 - Information Tag Pullout with System Serial Number
