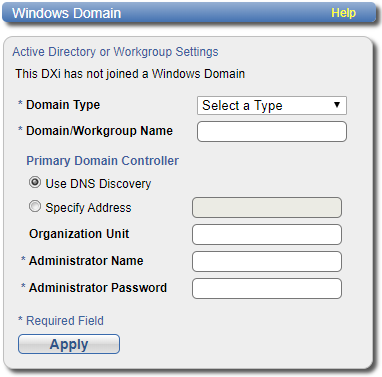

Windows Domain

The Windows Domain page allows you to join the DXi9000 Series to a Windows workgroup or a Windows domain using SMB. To use a NAS share configured for the CIFS/SMB protocol on a Windows network, you must first join the DXi9000 Series to a workgroup or a domain. After you join the DXi9000 Series to a workgroup or a domain, CIFS/SMB shares are available for use on the Windows network.

To access the Windows Domain page, on the NAS page, click the Windows Domain tab.

Tasks

Use the Windows Domain page to perform the following tasks:

Join a Windows workgroup (or simply create one by defining a workgroup on the DXi) to add the DXi9000 Series to a workgroup on a Windows network. After you join a workgroup, CIFS/SMB shares are available for use on the Windows network.

To join or create a Windows workgroup:

  1. Enter the following information about the Windows domain:

    Domain Type Select Workgroup.
    Domain/Workgroup Name

    Enter the workgroup name.

    The workgroup name can be the name of an existing workgroup or a new workgroup (for example, Workgroup or Sales).
  2. Click Apply.

Additional Information

When an SMB server is joined to a workgroup, share security is managed directly from the remote management console. For a CIFS/SMB share, security is provided through the read only or read/write access to the share. By default, when a CIFS/SMB share is created, the default security setting allows access for all users. Any access restrictions on individual users can be managed by editing a share on the NAS Summary page. See Editing a NAS Share.

Join a Windows domain to add the DXi9000 Series to a Windows network using Active Directory. After you join a domain, CIFS/SMB shares are available for use on the Windows network.

Before joining a Windows domain, make sure the date and time on the DXi9000 Series is correct and is synchronized with the Active Directory Services (ADS) server. The time difference between the DXi9000 Series and the ADS server (domain controller) must be less than 300 seconds. Quantum recommends using the same NTP server for the DXi9000 Series and the ADS server to keep them synchronized. See Date & Time.

To join a Windows domain:

  1. Enter the following information about the Windows domain:

    Domain Type Select Active Directory.
    Domain/Workgroup Name Enter the domain name.
  2. Click Apply.

Additional Information

When the system is joined to the Active Directory domain, share security is managed by the MMC (Microsoft Management Console) that is running on the domain controller. By default, when a CIFS/SMB share is created, the default security setting allows access for all users. Any access restrictions on individual users must be managed from the MMC.

Disjoin a workgroup or a domain to remove the DXi9000 Series from a Windows workgroup or domain. After you disjoin the workgroup or domain, CIFS/SMB shares are no longer available for use on the Windows network

To disjoin a workgroup or domain, click Disjoin.
