Expansion Drives
DXi9000 Standard Density (SD)
The DXi9000 SD Array modules (RBODs) and Expansion modules (EBODs) each support twelve high capacity 12 TB hard disk drives (HDDs). The Array and Expansion module hard drives are used for data storage.
All HDDs are mounted and pre-assembled in drive carriers. All HDDs are hot swappable.

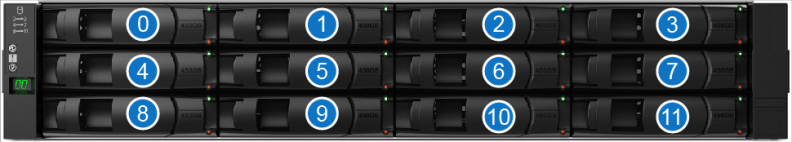

DXi9000 SD Array and Expansion Module Drive Slot Numbering
| 0 - HDD Slot 0 | 3 - HDD Slot 3 | 6 - HDD Slot 6 | 9 - HDD Slot 9 |
| 1 - HDD Slot 1 | 4 - HDD Slot 4 | 7 - HDD Slot 7 | 10 - HDD Slot 10 |
| 2 - HDD Slot 2 | 5 - HDD Slot 5 | 8 - HDD Slot 8 | 11 - HDD Slot 11 |
DXi9000 SD Hard Drive Carriers - Array and Expansion Modules
DXi9000 High Density (HD)
The DXi9000 HD Array module (RBOD) and Expansion module (EBOD) each support 60 high capacity 12 TB hard disk drives (HDDs). The Array and Expansion module hard drives are used for data storage.
All HDDs are mounted and pre-assembled in drive carriers. All HDDs are hot swappable.
Array and Expansion Module Drive Drawers
Each drawer can hold 12 drives in 3 rows. The drive locations are numbered 0 - 11.
Array (RBOD) and Expansion (EBOD) Module Drive Drawer
| Item | Drawer Drive Location |
|---|---|
| 1 | Front Row (Drives 0,3,6,9) |
| 2 | Middle Row (Drives 1,4,7,10) |
| 3 | Back Row (Drive 2,5,8,11) |
The 60 drive slots in the RBOD and EBOD are in the following locations.
Table 1: Array (RBOD) and Expansion (EBOD) Module Drive Drawers - Drive Slot Location
| Drive Drawer | Drives in Drawer | Drive Slot Number |
|---|---|---|
| 1 | 0 - 11 | 0 - 11 |
| 2 | 0 - 11 | 12 - 23 |
| 3 | 0 - 11 | 24 - 35 |
| 4 | 0 - 11 | 36 - 47 |
| 5 | 0 - 11 | 48 - 59 |

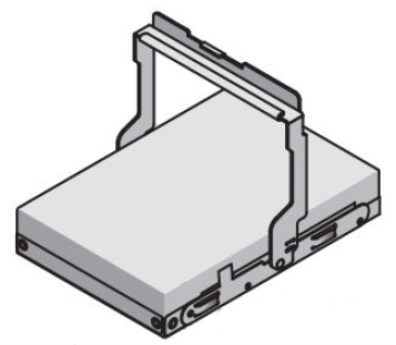

DXi9000 HD Hard Drive Carriers - Array and Expansion Modules
