DXi9000 Series Array and Expansion Module Power Supply Indicators
Each power supply unit (PSU) has three status LEDs. The asterisk (*) indicates a fault condition.
Each DXi9000 Series Expansion module power supply has LED indicators to show whether power is present or whether a power fault has occurred:
Caution: All power supplies are hot swappable. When replacing power supplies, never remove more than one power supply at a time from the system. Also, before you remove one power supply, make sure the other power supply is operating correctly (power indicator is green).
DXi9000 SD Array and Expansion Module - Power Supply LED Indicators

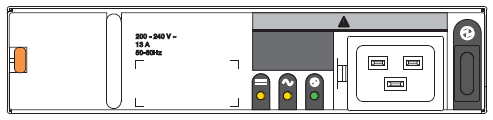

DXi9000 HD Array and Expansion Module - Power Supply LED Indicators
|
Item |
LEDs |
LED On |
LED Off |
|---|---|---|---|
|
1 |
Power (green) | AC power is present. | AC power is not present. |
|
2 |
Power supply mode fault |
Indicates a fault detected. |
Normal status. |
