DXi9000 Series Array and Expansion Module Front Panel Features and Indicators



LED indicators and buttons are located behind the optional rack bezel on the front of the Array modules (RBODs) and Expansion modules (EBODs).

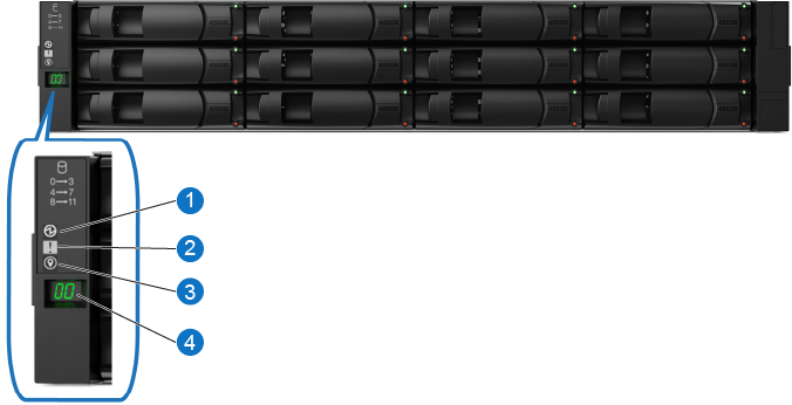

DXi9000 SD Array and Expansion Module LED Indicators – Front Panel

Item	Button/LED	Description
1	Power (green)	Indicates the enclosure has main power.
2	Service action required (amber)	Indicates at least one of the components within the enclosure has detected a fault.
3	Locate (blue)	There is an active request to physically locate the shelf.
4	Seven segment display (green)	Displays tray ID and error code. (Displays 99 when the Array module is operating normally and 00 to 09 when the Expansion modules are operating normally).

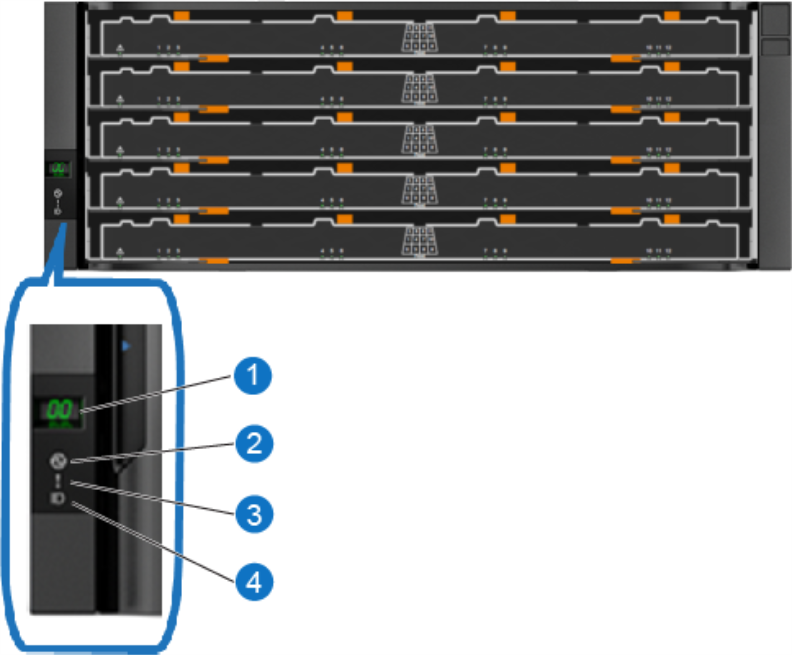

DXi9000 HD Array and Expansion Module LED Indicators – Front Panel

Item	Button/LED	Description
1	Seven segment display (green)	Displays tray ID and error code. (Displays 99 when the Array module is operating normally and 00 when the Expansion module is operating normally).
2	Power (green)	Indicates the enclosure has main power.
3	Service action required (amber)	Indicates at least one of the components within the enclosure has detected a fault.
4	Locate (blue)	There is an active request to physically locate the shelf.
