to mArray Module Rear Panel Indicators
LED indicators and buttons are located on the back of the Array modules (RBODs).

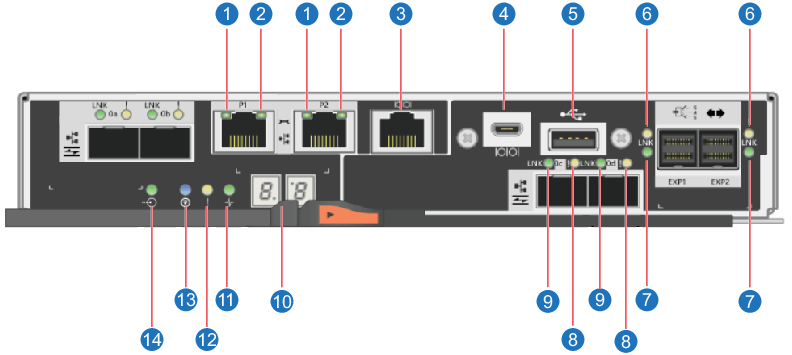

NetApp Array Module LED Indicators – Rear Panel
Note: This controller is used in some DXi9000 SD and DXi9000 HD systems.

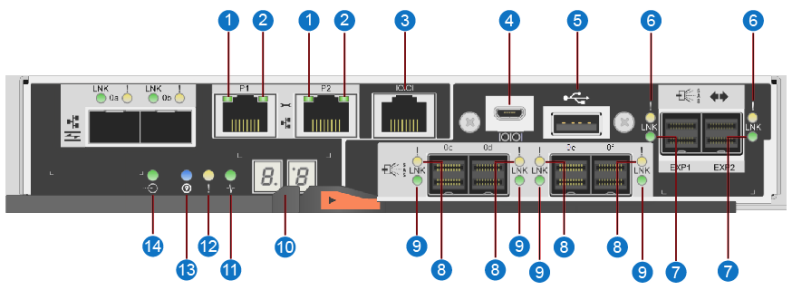

Lenovo Array Module LED Indicators – Rear Panel
Note: This controller is used in some DXi9000 SD and DXi9000 HD systems. DXi9100 systems use this controller exclusively.
Note: This image shows a quad-port SAS HIC (Host Interface Card). New Array Modules (RBODs) will arrive with a dual-port SAS HIC.
| Item | Button/LEDs | Description |
|---|---|---|
| 1 | Ethernet link rate (green) | Solid - port speed 1000MB/sec. established. |
| 2 | Ethernet activity (green) | Solid - link established. Blinking - indicates port activity. |
| 3 | Serial port (RJ45) | Not used. |
| 4 | Mini USB | Not used. |
| 5 | USB | Not used. |
| 6 | Drive expansion port fault (amber) | Both Off - cable unplugged.
Fault Off and Activity On - all links operating.
Fault On and Activity Off - at least one link active and at least one link fault. |
| 7 | Drive expansion activity (green) | Both Off - cable unplugged.
Fault Off and Activity On - all links operating.
Fault On and Activity Off - at least one link active and at least one link fault. |
| 8 | SAS host/expansion fault (amber) |
Both Off - cable unplugged. Fault Off and Activity On - all links operating. Fault On and Activity Off - at least one link active and at least one link fault. |
| 9 | SAS host/expansion activity (green) |
Both Off - cable unplugged. Fault Off and Activity On - all links operating. Fault On and Activity Off - at least one link active and at least one link fault. |
| 10 | Seven segment display (green) | Displays tray ID and error code. (Displays 99 when the Array module is operating normally.) |
| 11 | Activity |
Blinking Green - The controller is active. |
| 12 | Attention | Amber - The controller requires service. Off - The controller is operating normally. |
| 13 | Locate |
Blue - There is an active request to physically locate the controller. Off - There is no active request to locate the controller. |
| 14 | Cache Active |
Green - The cache contains data not yet written to disk. Off - Either the cache is inactive or all data from the cache has been written to disk. |
