DXi4800 Node 10 GbE Ethernet Port Indicators

Depending on the configuration, Quantum DXi4800 systems include a 10 GbE adapter card (dual optical or Twinax ports).

The 10 GbE adapter with quad optical or Twinax ports has LED indicators for each 10 GbE port:

Link indicator	Off - Indicates the port is not connected to the network. Green - Indicates the port is connected to the network at 10Gbps speed. Yellow - Indicates the port is connected to the network at 1 Gbps speed.
Activity Indicator	Blinking - Indicates network data is being sent or received.

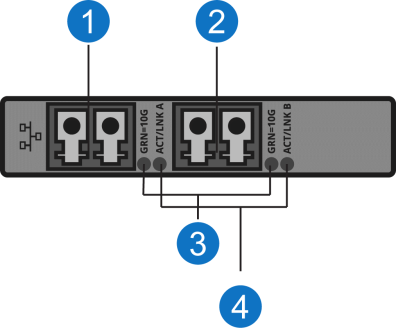

DXi4800 - Optional 10 GbE Port LEDs (Optical or Twinax)

Item	Description
1	Port 1
2	Port 2
3	Link indicators
4	Activity Indicators
