DXi4700 Node 10 GBase-T Ethernet Port Indicators

Each 10 GBase-T port on the DXi4700 Node rear panel has two LED indicators (see Figure 1):

Link indicator	Off - Indicates the port is not connected to the network. Green - Indicates the port is connected to the network at maximum speed (10 Gbps). Amber - Indicates the port is connected to the network at less than its maximum port speed.
Activity Indicator	Blinking green - Indicates network data is being sent or received.

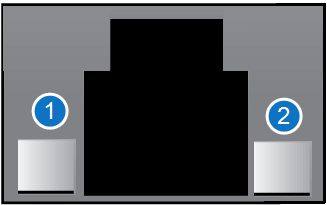

Figure 1: DXi4700 - 10 GBase-T Ethernet Port LEDs

1 - Activity Indicator

2 - Link Indicator
