Determining the DXi4700 Model
You will need to determine if the DXi system is a DXi4700 G1 or DXi4700 G2. Model information is located on the pull-out information tag on the front of the Node (see Figure 1).

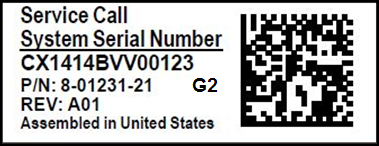

- The DXi4700 G2 information tag includes “G2” in the part number (see Figure 2).

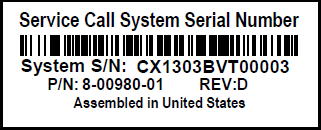

- The DXi4700 G1 information tag does not include “G1” in the part number (see Figure 3).
Figure 1: DXi4700 Information Tag
1. Information Tag |
