HDD LED Indicators

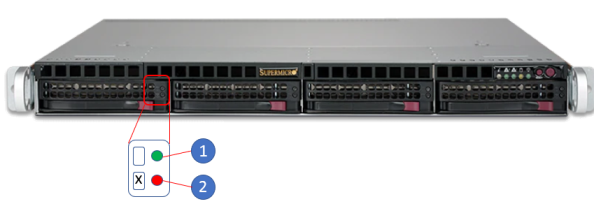

Each HDD has two LED indicators:
- An activity indicator (green) and a status indicator (red).
- In RAID configurations, the status indicator lights to indicate the status of the drive.
- In non-RAID configurations, the status indicator remains off.
| Item | LED | State/Condition | Indication |
|---|---|---|---|
| 1 | Green | Blinking | Drive activity |
| 2 | Red
|
Blinking | Drive rebuilding |
| Solid on | Drive failure |
