Server Network Connections
Each server has different network connection options depending on the expansion cards installed.
| Slot | Card Description | Connection Type/Use |
|---|---|---|
|
Slot 1
|
Dual Port 10 GbE NIC |
|
|

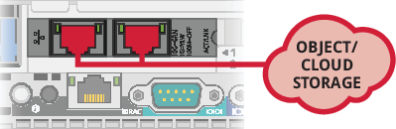

Dual Port 10 GbE baseT NIC (Dell X550) |
|
|
|

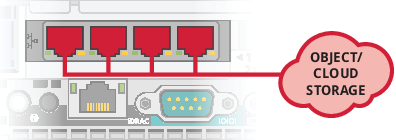

Quad Port 1 GbE NIC |
|
|
|
Empty |
N/A |
|
|
Slot 2
|
Dual Port 10 GbE NIC |
|
|

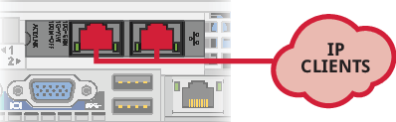

Dual Port 10 GbE baseT NIC (Dell X550) |
|
|
|
Quad Port 1 GbE NIC |
|
|
|

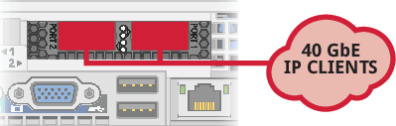

Dual Port 40 GbE NIC HBA (Mellanox Card operating in Ethernet mode) |
|
|
|

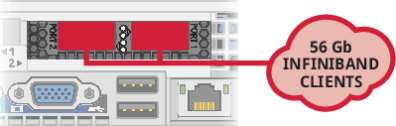

Dual Port 56 Gb InfiniBand HCA (Mellanox Card operating in InfiniBand mode) |
|
|
|
Empty |
N/A |
|
|
Slot 3 |
Dual Port 10 GbE NIC Note: Supports either direct or switch connections to QXS RAID Chassis. |
|
|
Quad Port 8 Gb Fibre Channel |
|
|
|

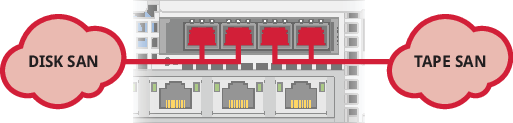

Dual Port 16 Gb Fibre Channel |
|
|
|
Quad Port 16 GB Fibre Channel |
|
