Expansion Cards – Logical Port Numbers and Slots
The following logical port numbers are applicable to the Expansion Cards:
Embedded Network Interface Card (NIC)

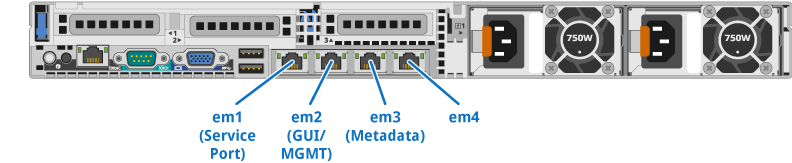

4-port 1 GbE Network Daughter Card/Embedded NIC
The following applies to , ALL , , , , systems.
Figure 1: Logical/Physical Port numbers for the 4-port 1 GbE Network Daughter Card/Embedded NIC
Note: em4 is bonded by default into Bond 0 (metadata) along with em3 during installation, but the bond may be broken and em4 used for something other than the metadata bond after installation if desired.
Slot 1 - Network Interface Cards (NICs)
The following applies to , ALL , , , , systems.

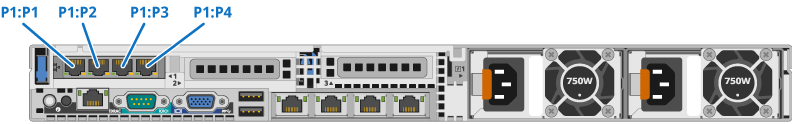

4-port 1 GbE NIC in Slot 1
Figure 2: Logical/Physical Port numbers for the 4-port 1 GbE NIC in Slot 1

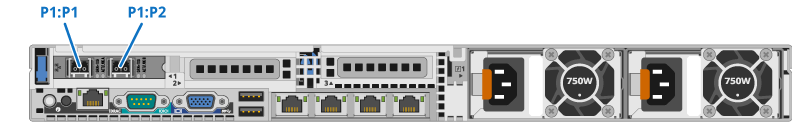

2-port 10 GbE NIC in Slot 1
Figure 3: Logical/Physical Port numbers for the 2-port 10 GbE NIC in Slot 1

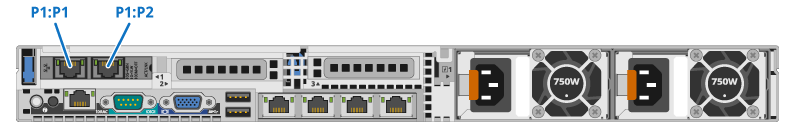

2-port 10 GbE baseT NIC in Slot 1
Figure 4: Logical/Physical Port numbers for the 2-port 10 GbE baseT NIC in Slot 1
Slot 2 - Network Interface Cards (NICs) - 10 GbE NIC is NOT installed in Slot 3

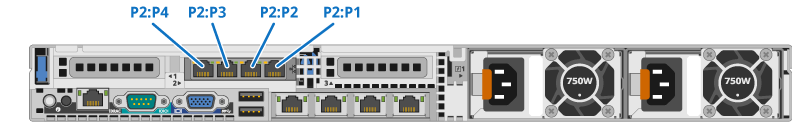

4-port 1 GbE NIC in Slot 2
The following applies , , , and systems.
Figure 5: Logical/Physical Port numbers for the 4-port 1 GbE NIC in Slot 2

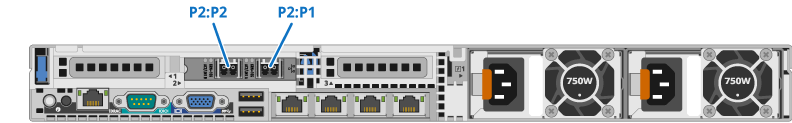

2-port 10 GbE NIC in Slot 2
The following applies to , ALL , , , , systems.
Figure 6: Logical/Physical Port numbers for the 2-port 10 GbE NIC in Slot 2

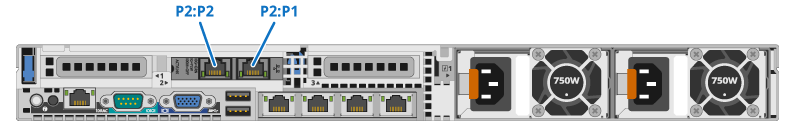

2-port 10 GbE baseT NIC in Slot 2
The following applies , , , and systems.
Figure 7: Logical/Physical Port numbers for the 2-port 10 GbE baseT NIC in Slot 2

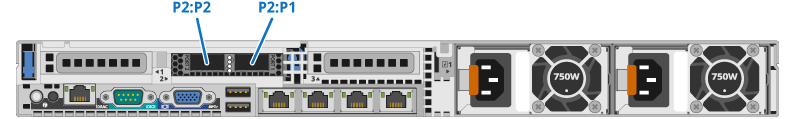

2-port 40 GbE NIC in Slot 2
The following applies , , , and systems.
Figure 8: Logical/Physical Port numbers for the 2-port 40 GbE NIC in Slot 2

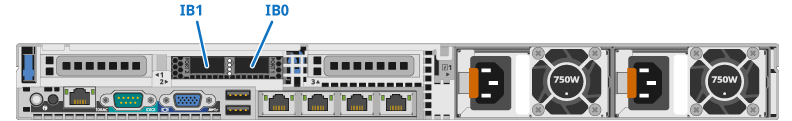

2-port 56 Gb InfiniBand HCA in Slot 2
The following applies , , , and systems.
Figure 9: Logical/Physical Port numbers for the 2-port 56 Gb InfiniBand HCA in Slot 2
Slot 2 - Network Interface Cards (NICs – if a 10 GbE NIC is installed in slot 3 for iSCSI connections

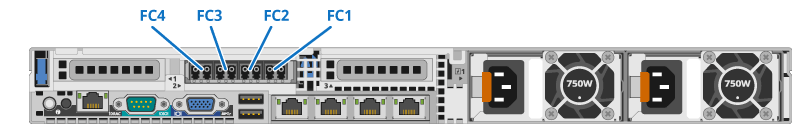

4-port 8 Gb Fibre Channel Card in Slot 2
The following applies , , , and systems.
Figure 10: Logical/Physical Port numbers for the 4-port 8 Gb Fibre Channel Card in Slot 2

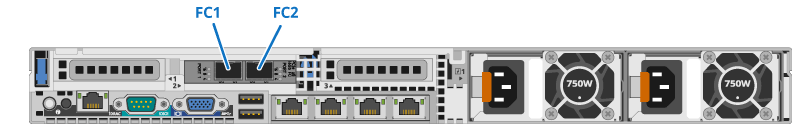

2-port 16 Gb Fibre Channel Card in Slot 2
The following applies , , , and systems.
Figure 11: Logical/Physical Port numbers for the 2-port 16 Gb Fibre Channel Card in Slot 2
4-port 16 Gb Fibre Channel Card in Slot 2
The following applies , , , and systems.
Figure 12: Logical/Physical Port numbers for the 4-port 16 Gb Fibre Channel Card in Slot 2
2-port 10 GbE NIC in Slot 2
The following applies , , ALL , and systems.
Note: SFP+ Transceivers not used in systems. Instead, uses Twinax cables.
Figure 13: Logical/Physical Port numbers for the 2-port 10 GbE NIC in Slot 2
2-port 10 GbE baseT NIC in Slot 2
The following applies , , , and systems.
Figure 14: Logical/Physical Port numbers for the 2-port 10 GbE baseT NIC in Slot 2
2-port 40 GbE NIC in Slot 2
The following applies , , , and systems.
Figure 15: Logical/Physical Port numbers for the 2-port 40 GbE NIC in Slot 2
2-port 56 Gb InfiniBand HCA in Slot 2
The following applies , , , and systems.
Figure 16: Logical/Physical Port numbers for the 2-port 56 Gb InfiniBand HCA in Slot 2
Slot 3 - Network Interface Cards and Fibre Channel Cards

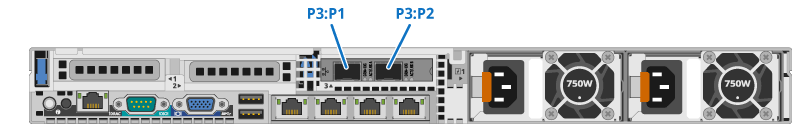

2-port 10 GbE NIC in Slot 3
The following applies , , ALL , and systems.
Note: SFP+ Transceivers not used in systems. Instead, uses Twinax cables.
Figure 17: Logical/Physical Port numbers for the 2-port 10 GbE NIC in Slot 2.

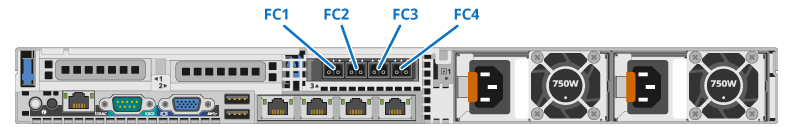

4-port 16 Gb Fibre Channel Card in Slot 3
The following applies , , , and systems.
Figure 18: Logical/Physical Port numbers for the 4-port 16 Gb Fibre Channel Card in Slot 3

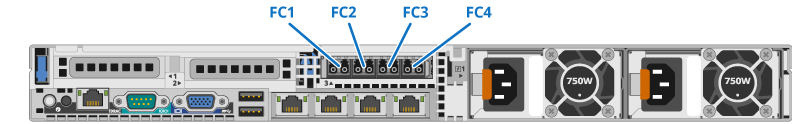

4-port 8 Gb Fibre Channel Card in Slot 3
The following applies , , , and systems.
Figure 19: Logical/Physical Port numbers for the 4-port 8 Gb Fibre Channel Card in Slot 3

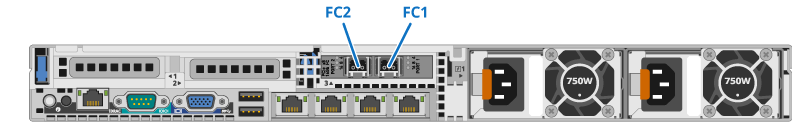

2-port 16 Gb Fibre Channel Card in Slot 3
The following applies , , , and systems.
Figure 20: Logical/Physical Port numbers for the 2-port 16 Gb Fibre Channel Card in Slot 3
