Access Default Login Credentials
Note: If you are installing multiple VS1110-A systems, Quantum recommends that you record all IP information. In addition, you can print a copy of the Networking IP List to help you record your IP addresses.
Use the following login credentials and IP address for initial system startup.
| Identifier | Username/Password/Setting | Description |
|---|---|---|
| Host Operating System (OS) Username | Username: admin | |
|
Host OS and VNC Password (These passwords are synched) |
Password: admin |
You can change this password using VS-Settings Menu option 3) Advanced Menu, then option 0) Change password for user. |
| Host OS Management IP Address | dhcp |
Open VS-Info from the Host OS desktop to see the actual IP address. You can set the Host OS management IP to a static address using VS-Settings Menu option 3) Advanced Menu, then 1) Set IPs/Jumbo frames. |

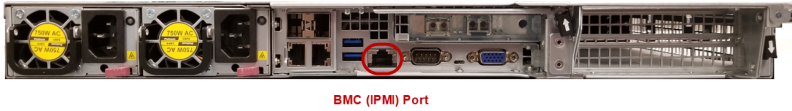

| Default BMC1 (IPMI)2 Username |
Username: ADMIN | |
| Default BMC (IPMI) Password |
Password: BMCadmin1 |
You can change this password using VS-Settings Menu option 3) Advanced Menu, then 5) Change BMC settings. |
| Default BMC IP Address | 192.168.17.21 | You can change this address using VS-Settings Menu option 3) Advanced Menu, then option 5) Change BMC settings. |
|
1BMC: Baseboard Management Controller - A specialized service processor that monitors the physical state of a computer, network server or other hardware device using sensors and communicating with the system administrator through an independent connection. 2IPMI: Intelligent Platform Management Interface - A set of computer interface specifications for an autonomous computer subsystem that provides management and monitoring capabilities independently of the host system's CPU, firmware (BIOS or UEFI) and operating system. |
||
