F2000 Hardware Overview

The Quantum F2000 is Quantum’s an ultra-fast and highly-available storage array for editing, rendering, and processing of video content and other large unstructured data sets in a StorNext shared storage environment.

The F2000 is part of a StorNext shared storage environment, and is supported by the following host software interfaces including:

Item

Component

1

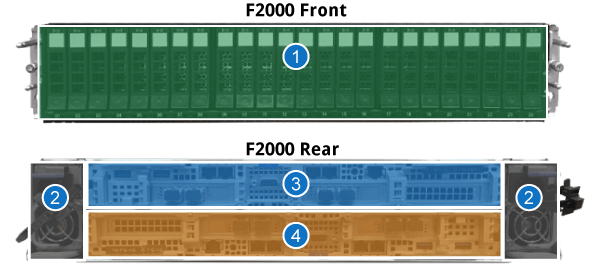

Drive Bays at the front of the system; 24 Non-Volatile Memory Express (NVMe) Solid State Drives (SSDs).

Capacity options:

  • 1.92 TB
  • 3.84 TB
  • 7.68 TB

2

Redundant power supply units (PSUs) at the rear of the system. PSU A is on the left and PSU B is on the right.

3

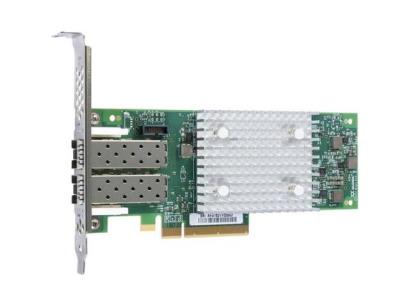

Controller A (top). Redundant/failover operations supported with Controller B (bottom). This example shows two dual-port 32 Gb Fibre Channel (FC) cards installed in the controller.
4 Controller B (bottom). Redundant/failover operations supported with Controller A (top). This example shows two dual-port 32 Gb Fibre Channel (FC) cards installed in the controller.

The F2000 contains 24 dual-ported NVMe SSDs and is available in different total capacities:

SSD Quantity

Raw System Capacity

SSD Size

24

46.08 TB

1.92 TB

24

92.16 TB

3.84 TB

24

184.3 TB

7.68 TB

The F2000 is designed for a StorNext shared storage environment. For systems shipped with F2000 software later than v1.1.2, it is pre-configured with 2 logical unit numbers (LUNs) in a RAID5 configuration. For systems shipped with F2000 software v1.1.2 or earlier, it is pre-configured with 16 logical unit numbers (LUNs) in a RAID5 configuration. It is optimized for high-resolution workflows. DO NOT change the pre-configured LUNs.

The LUNs are intended for data storage, not metadata storage. Quantum recommends using a separate storage array for metadata storage.

The front of the F2000 contains a drive bay that includes 24 Non-Volatile Memory Express (NVMe) Solid State Drives (SSDs) for fully-populated systems, or 12 drives for half-populated systems.

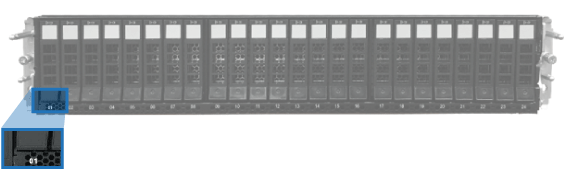

The SSDs are numbered from 01 to 24, from left to right. The drive slot number is printed at the bottom of the chassis below the SSD drive assemblies:

Note: The F2000 is not available with a combination of both 32 Gb FC cards and 100 GbE cards installed in the same system.

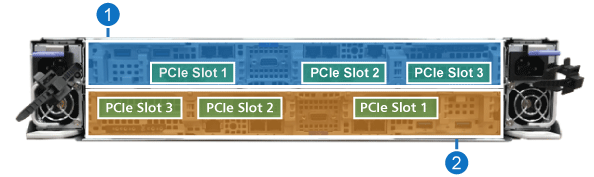

F2000 Rear - PCIe Slot Locations

Item

Description

1

Controller A PCIe slot locations.

2

Controller B PCIe slot locations.

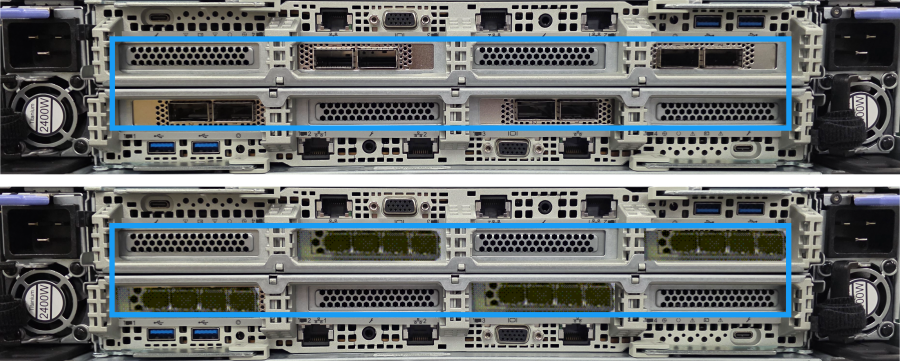

The F2000 is available in an FC (Fibre Channel) or Ethernet interface card configuration:

FC (Fibre Channel) system HBAs and Ethernet system interface cards

The F2000 is available with an FC or Ethernet interface configuration:

FC model: 2 x dual-port 32 Gb FC cards per controller. FC cards are installed in PCIe slot 1 and slot 3 on both controllers.

High-speed Optical Ethernet model: 1 x dual-port 100 Gb Ethernet (GbE) card per controller. Ethernet cards are installed in PCIe slot 1 on both controllers.

Copper Ethernet model: 1 x dual-port 10 Gb Base-T Ethernet (GbE) card per controller. Ethernet cards are installed in PCIe slot 2 on both controllers.

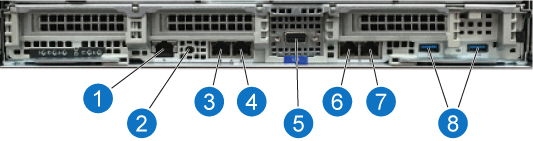

F2000 Rear - PCIe Slot Locations

Note: Slot brackets shown in place. Your system will have either FC or Eth cards installed in the appropriate slots.

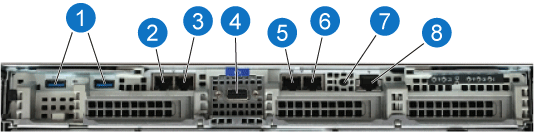

Item

Component

1

 Dual USB 3.0 ports

2

 Port 4 – 10 GbE (RJ-45)
3 Port 3 – 10 GbE (RJ-45)
4 VGA Port (DB-15)
5 Port 2 – 10 GbE (RJ-45)
6 Port 1 – 10 GbE (RJ-45)
7 Serial UART Port
8 IPMI/BMC Port (RJ45)

F2000 Rear - PCIe Slot Locations

Note: Slot brackets shown in place. Your system will have either FC or Eth cards installed in the appropriate slots.

Item

Component

1

 IPMI/BMC Port (RJ45)

2

 Serial UART Port
3 Port 1 – 10 GbE (RJ-45)
4 Port 2 – 10 GbE (RJ-45)
5 VGA Port (DB-15)
6 Port 3 – 10 GbE (RJ-45)
7 Port 4 – 10 GbE (RJ-45)
8 Dual USB 3.0 ports

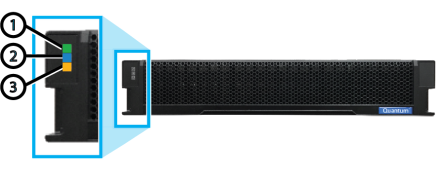

The front chassis LEDs are available on the left side of the system and are visible with or without the Quantum bezel installed:

Item

LED

Action

1

Power

Off: Power off

Green solid: Power on

2

Identify

• Off: Chassis is not being identified

• Blue: Chassis is being identified

3

Fault

Off: No faults reported

Amber (1Hz Blinking): Warning error

Amber (4Hz Blinking): Critical error

Amber solid: Fault conditions exist

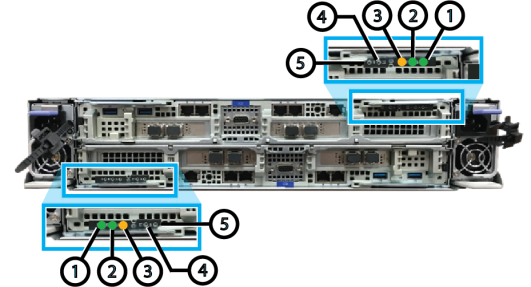

The rear controller LEDs are available on both controllers. The top controller LEDs are located at the top-right of the controller. The bottom controller LEDs are located on the lower-left of the controller.

Item

LED

Action

1

Power

Off: Controller power off

Green solid: Controller power on

2

Active

Off: Controller not active

Green: Controller is active

3

Fault

Amber solid: Fault conditions exist

Off: Normal operation

4

BBU Status

Not used

5

BBU Fault

Not used

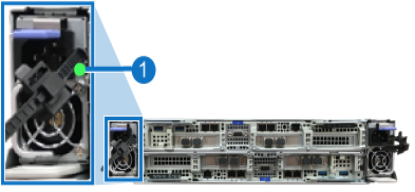

The PSU Fault led is located in the same position on PSU A and PSU B. Location and description of the LED:

Item

LED

Action

1

Power

Off: PSU power off

Green solid: PSU power on

Amber solid: Fault, failure, or AC disconnection on PSU

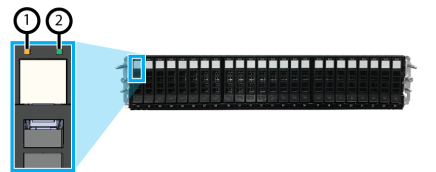

The SSD LEDs are located at the top of SSD drive carriers. Locations and descriptions of the LEDs:

Item

LED

Action

1

Drive Fault LED

Amber (solid or blinking): Degraded drive reported. Replace the drive.

2

Drive Link/Active

Off: No drive present

Green: Drive present

Green (Blinking): Drive active

The chassis is the primary housing that contains and connects all F2000 components.

The chassis is 2U in height and contains the drive bay, located at the front, which houses all 24 of the data SSDs. The rear of the chassis contains PSU bays and two controller bays.

The major system components, such as the fan modules, CPUs, memory, and M.2 boot drives, are all contained within each of the two controllers.

Item

Description

1

Drive Bay at the front of the system

2

Dual controller bays at the rear of the system

3

Dual PSU bays at the rear of the system
s

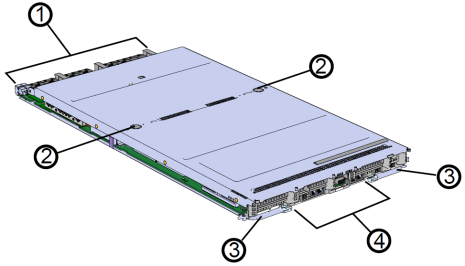

The F2000 chassis contains redundant controllers that each contain and connect system components. The major system components, such as the interface cards, fan modules, CPUs, DIMMs, and M.2 Boot Drives, are all contained inside the controllers.

The redundancy of the controllers is designed so that the system can run on one controller in the event that the other controller fails. The controllers can be hot-swapped to ensure that the F2000 is always available.

Item

Description

1

Controller connectors

2

Cover release buttons

3

Controller release latches

4

Rear I/O

The fan module includes two fans and provides the primary cooling for the F2000. The fan module is installed inside each controller. It is located close to the controller components to provide efficient cooling to system components.

An F2000 system contains 10 fan modules, with five fan modules in each controller.

Item

Description

1

Fan handles used to lift the fan module out from the controller

2

Fan module (which includes two fans)

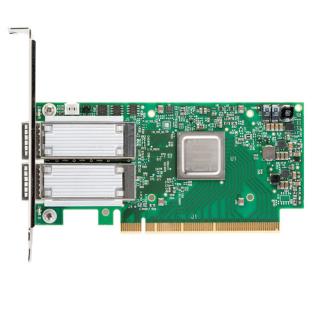

The F2000 array can include one of the following Fibre Channel (FC) or Ethernet interface card configurations:

Note: The F2000 is not available with both FC cards and Ethernet cards installed in the same system.

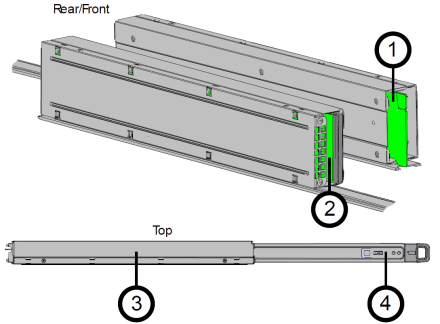

The Power Interface Board (PIB) canister houses the PIB that extends the connection of the PSU to the midplane of the chassis. The PIB canister contains a PSU connector that attaches to the PIB. The other end of the PIB canister contains a card edge connection that fits into a midplane connector.

Item

Description

1

PIB card edge

2

PSU connector

3

PIB Canister

4

Handle

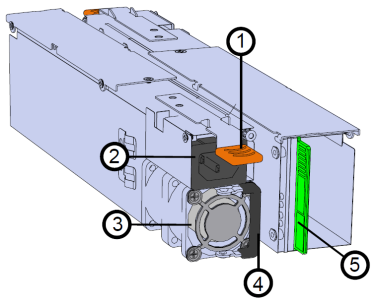

The F2000 contains two redundant, hot-swappable 2000 W power supply units (PSUs). Each PSU requires an input voltage of between 200-240 AC. The PSUs are 80 Plus™ Platinum certified, and utilize C14 power cable receptacles. PSU specifications:

Specifications

Value

Power Output

2000 W

80 PLUS Standard

80 Plus™ Platinum

Input Voltage

200-240 VAC

Connector Type

C14

Number per chassis

2

Weight

.81 kg / 1.8 lbs

Note: The system power supply units (PSUs) require high-line voltage (200–240 VAC) to supply their rated capacity.

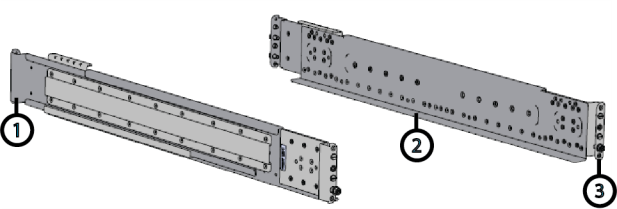

The F2000 is attached to a rack using two rack-mounted rails that allow for the redundant controllers to be pulled out of the rear of the chassis for servicing.

The rack rails contain a rack ear locking mechanism on both sides to secure the chassis in the rack during basic servicing procedures. The rack ear locks are easily unlatched to provide the option to pull the chassis out of the rack to service the system.

Item

Description

1

Rear rack-mounting bracket

2

Chassis shelf

3

Front rack-mounting bracket

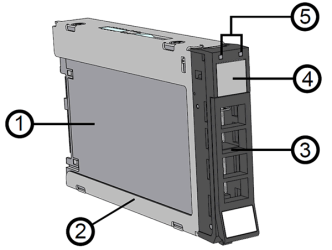

The SSD assembly is comprised of two parts: SSD and drive carrier.



Item

Description

1

SSD

2

Drive carrier

3

Drive carrier handle

4

Latch release button

5

LEDs

Note: See for details about the SSD assembly LEDs.
